FT-U.FL/IPEX-M-PCB-SMT-01

Description:

Features:

IPEX/U.FL is an ultra-miniature RF coaxial connector,it is used antenna connection lines within wireless devices to achieve maximum performance with minimum space,and compatible with various communication standards,such as 5G millimeter wave /Sub6, 4G, LTE, Wi-Fi, Bluetooth, GPS, WiGig, M2M, IOT, SigFox, WiSUN, NB-IoT, and LoRa. I-PEX is a connector offering solderless connection technology up to 8GHz band,and also with stable VSWR performance.
Professional manufacturer, support customization, quality assurance, fast delivery.

Online Inquiry

Specification

Product Model	FT-U.FL/IPEX-M-PCB-SMT-01
1、Product Description

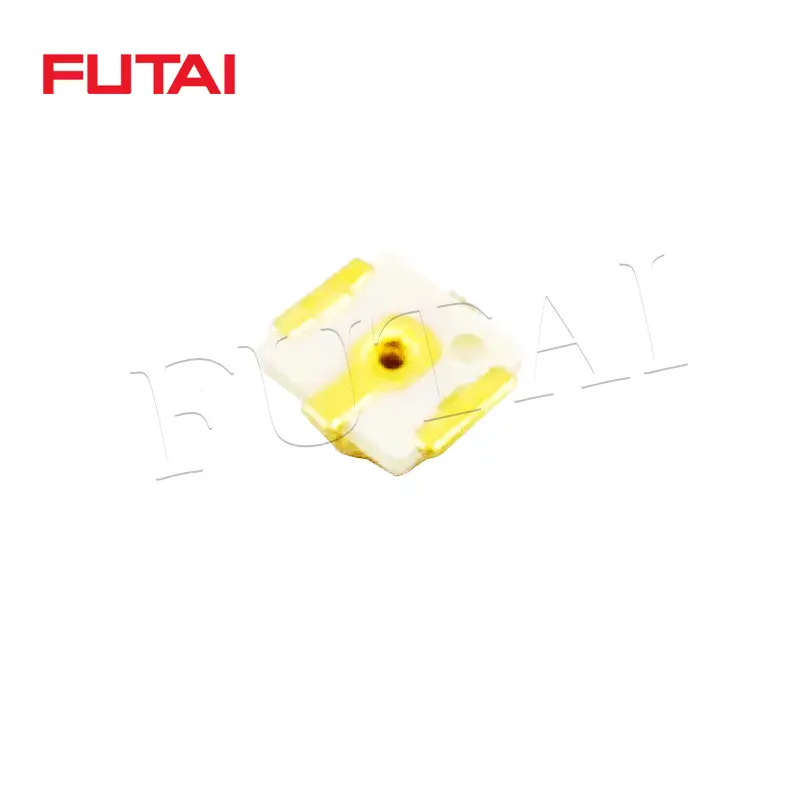

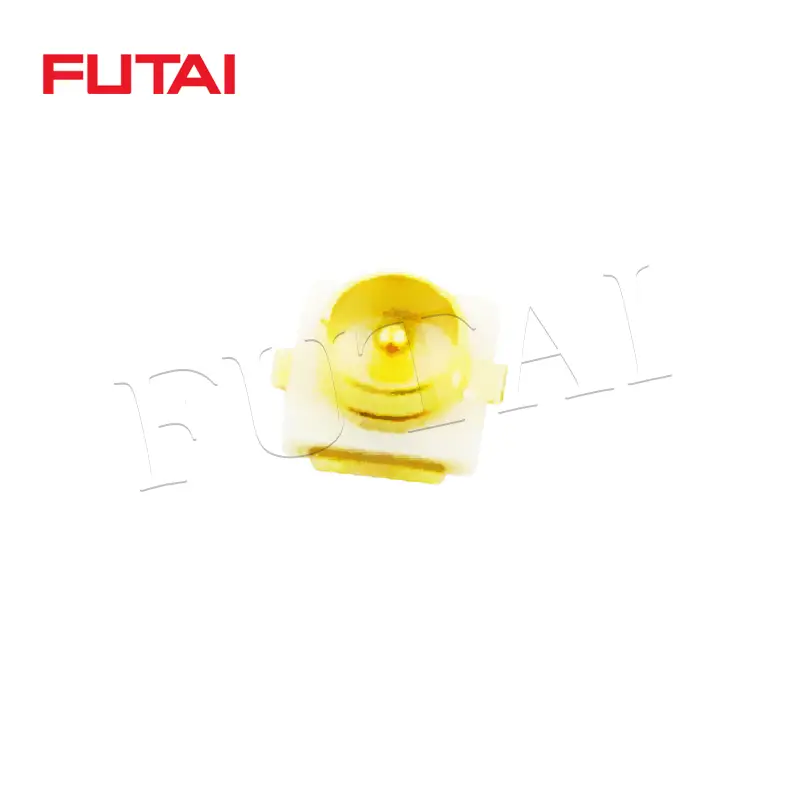

Connector Name	U.FL/IPEX Male
Mount Method	PCB
Mount Method	SMT
2、Electrical
Frequency Range	DC~8GHz
V.S.W.R	≤1.35
Impedance	50Ω
Mating Force (Initial/After Test)	≥30 N
Ground Contact Resistance	≥30(cycles)
Max. Input Power (W)	50
3、Material & Plating
Center pin contact	Copper AlloyC2680 / Gold Plating
Outer contact & Body	Copper AlloyC5191 / Gold Plating
Dielectric Insulator	LCP,White UL94V-0
4、Environmental & Mechanical Specification
Operating Temperature	-40℃ to +85℃
Storage Temperature	-40℃ to +85℃
Substance Compliance	RoHS
Weight	460g

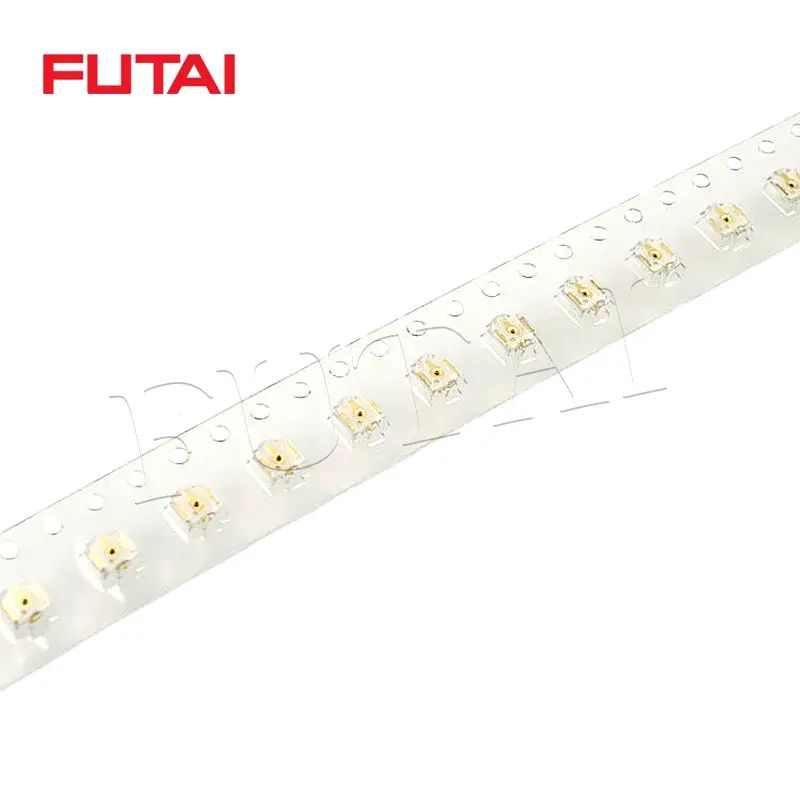

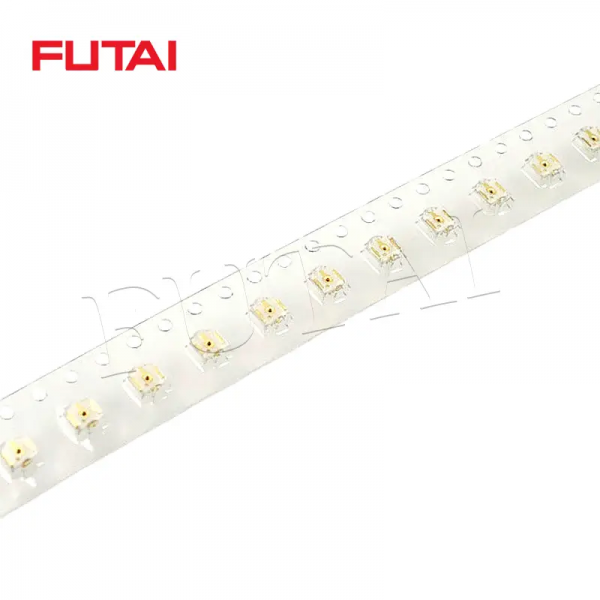

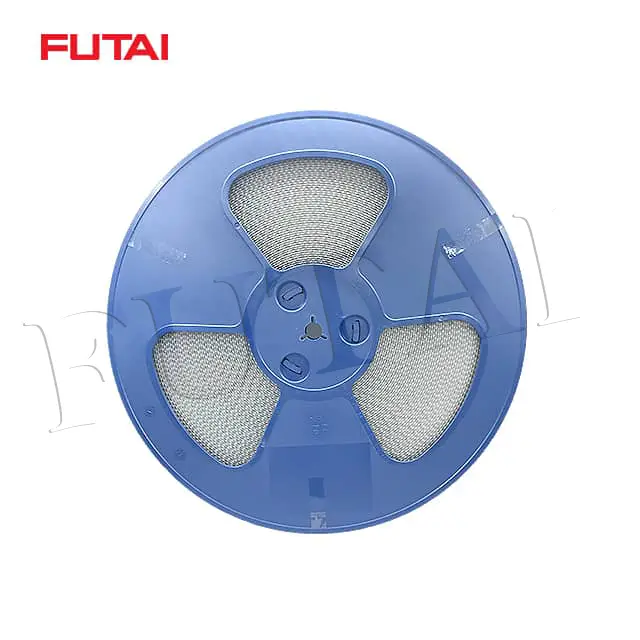

Package Type	5000PCS
