FT-TNCM-316A

Description:

Features:

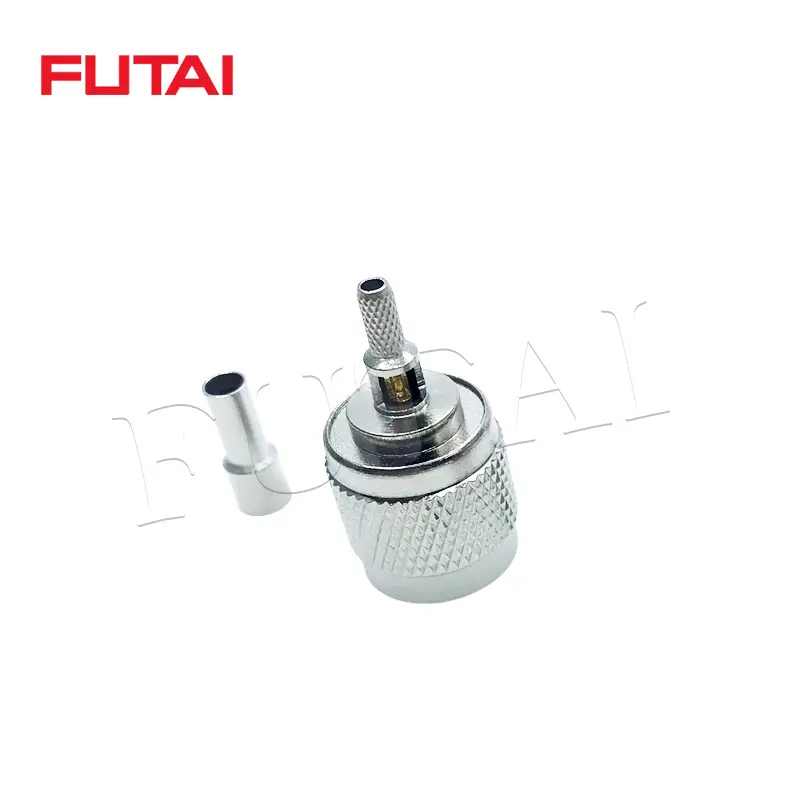

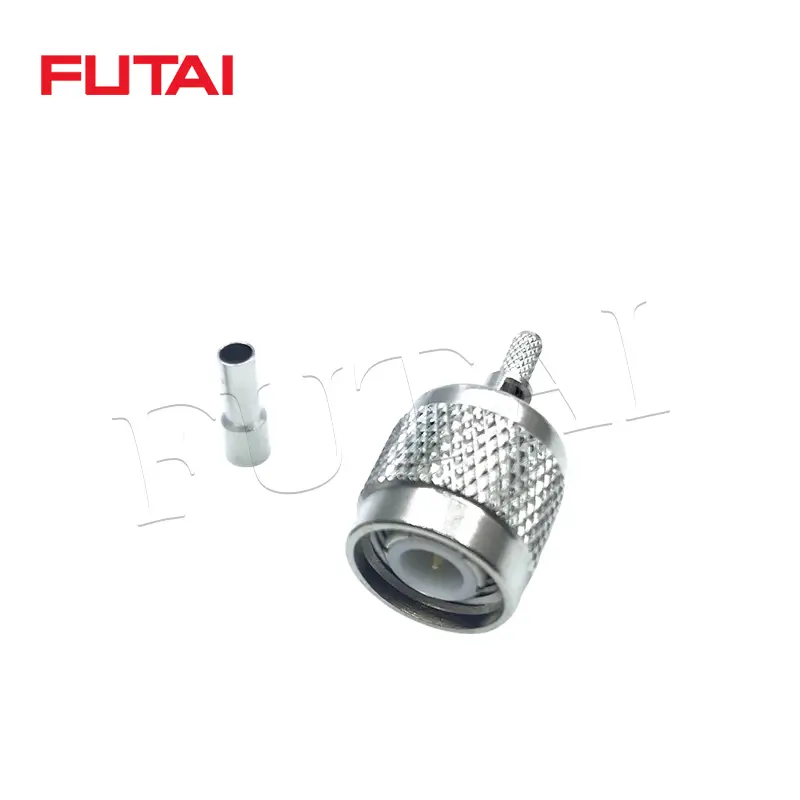

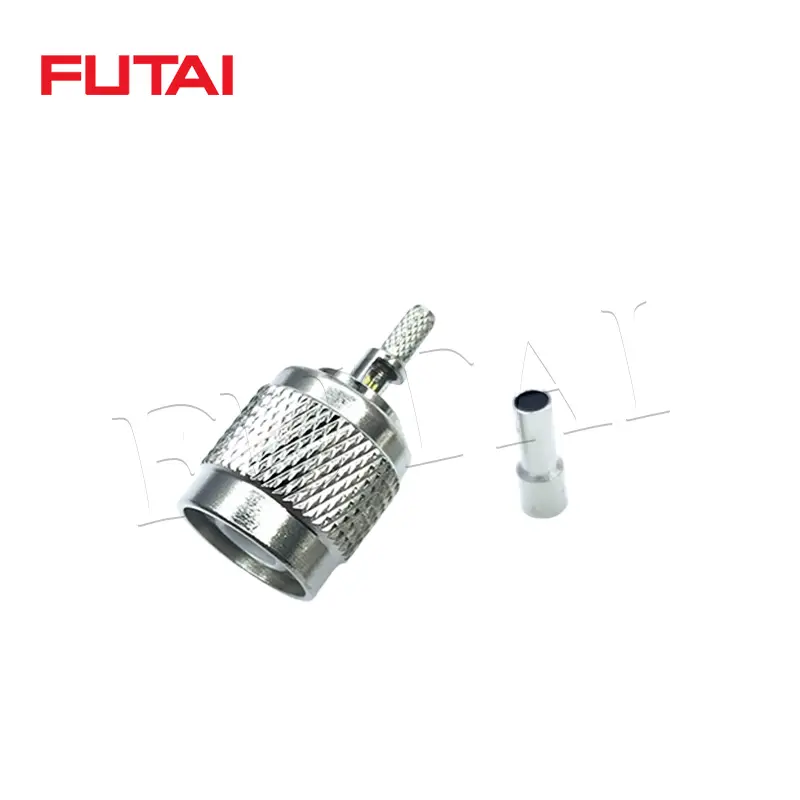

TNC Male Sky Window Connector is a threaded connection type RF coaxial connector, it has the characteristics of operating frequency bandwidth, reliable connection, good vibration resistance and so on. It can be used for computer network, radio (TV) base station, small car phone, aerospace navigation, radar monitoring and other microwave systems, and all kinds of radio instruments and equipment to connect RF cables to use.
Professional manufacturer, support customization, quality assurance, fast delivery.

Online Inquiry

Specification

Product Model	FT-TNCM-316A
1、Product Description
Connector Name	TNC Male
Cable	RG174 RG316
Mount Method	Crimp
2、Electrical
Frequency Range	DC~11GHz
V.S.W.R	≤1.25
Impedance	50Ω
Insertion Loss	≤0.15dB
Centre Conductor Retention Range	≥0.25 N
Coupling nut Retention Force	≥180 N
Durability(mating)	≥500(cycles)
Max. Input Power (W)	50
3、Material & Plating
Center pin contact	Brass Beryllium Copper/ Gold Plating
Outer contact & Body	Brass H59-1/ Nickel Plating
Dielectric Insulator	PTFE
Gasket	Silicone Rubber
Crimp ferrule	Brass/ Nickel Plating
4、Environmental & Mechanical Specification
Operating Temperature	-40℃ to +85℃
Storage Temperature	-40℃ to +85℃
Substance Compliance	RoHS
Weight	9.77g
Package Type	100PCS
