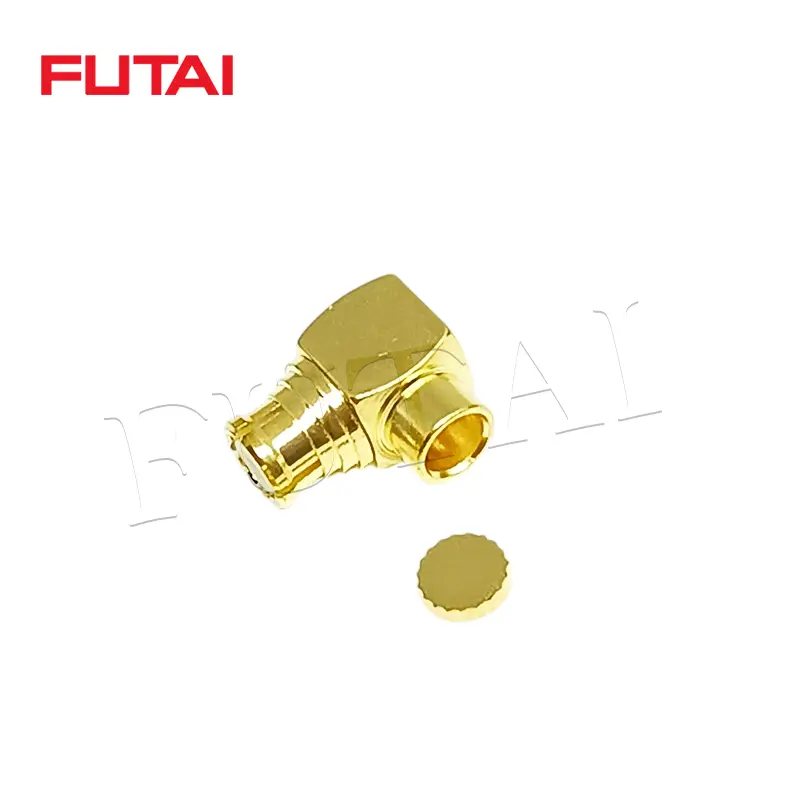

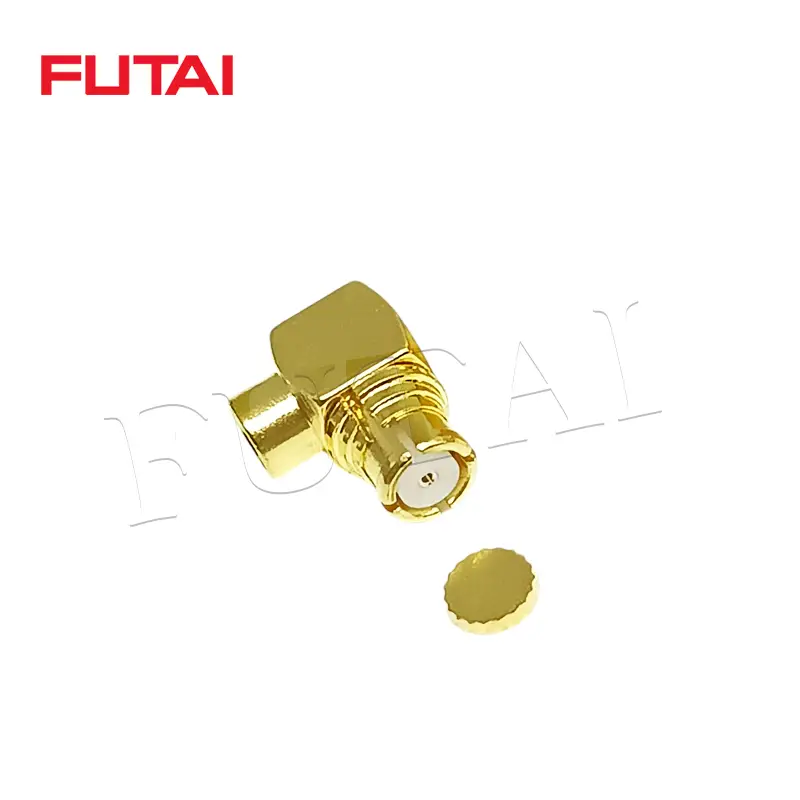

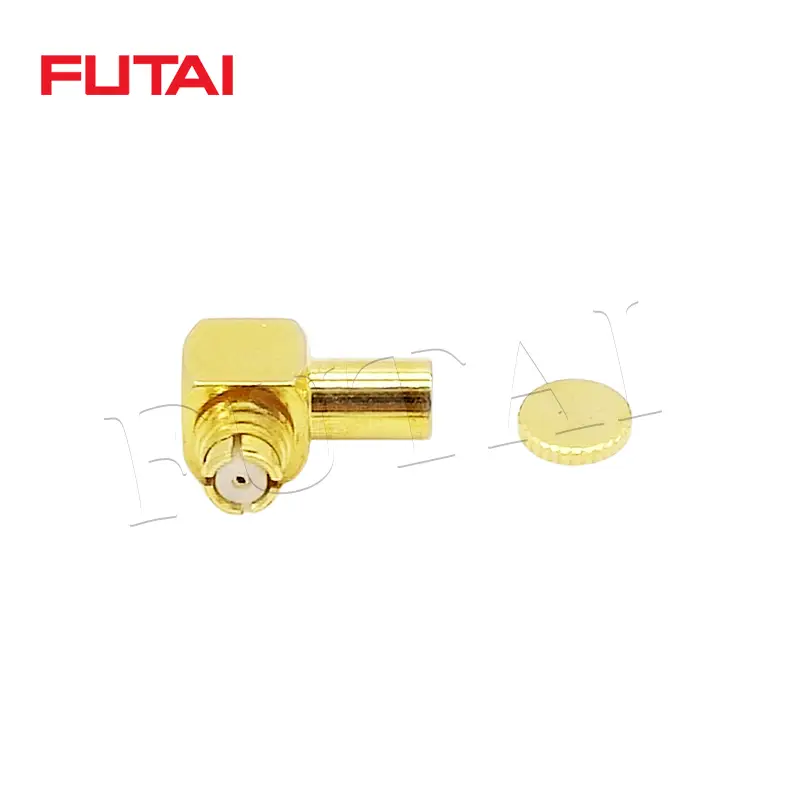

FT-SMPF-W-405A

Description:

Features:

SMP Female Connector is a small RF coaxial connector, it has the characteristics of small size, light weight, compact structure and easy to use. Widely used in global positioning system (GPS), digital PCN, all kinds of radio instruments, meters, small electronic equipment and wireless network (WLAN) system.
Professional manufacturer, support customization, quality assurance, fast delivery.

Online Inquiry

Specification

Product Model	FT-SMPF-W-405A
1、Product Description
Connector Name	SMP Female
Cable	RG405
Mount Method	Weld
2、Electrical
Frequency Range	DC~11GHz
V.S.W.R	≤1.25
Impedance	50Ω
Insertion Loss	≤0.15dB
Centre Conductor Retention Range	≥0.25 N
Coupling nut Retention Force	≥180 N
Durability(mating)	≥500(cycles)
Max. Input Power (W)	50
3、Material & Plating
Center pin contact	Brass Beryllium Copper/ Gold Plating
Outer contact & Body	Brass H59-1/ Gold Plating
Dielectric Insulator	PTFE
Gasket	Silicone Rubber
Crimp ferrule	Brass/ Nickel Plating
4、Environmental & Mechanical Specification
Operating Temperature	-40℃ to +85℃
Storage Temperature	-40℃ to +85℃
Substance Compliance	RoHS
Weight	0.6g
Package Type	100PCS
