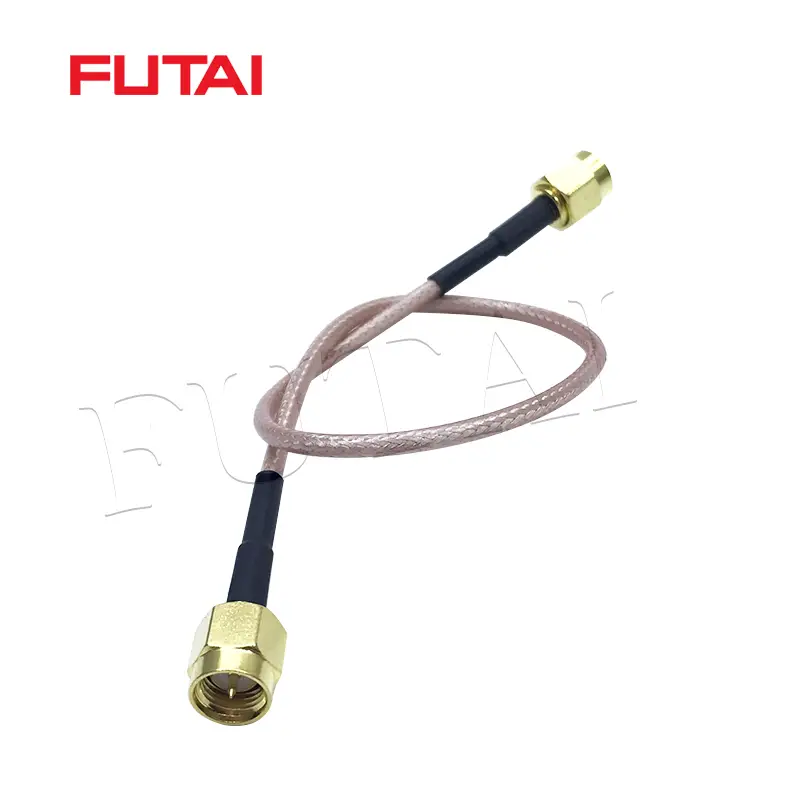

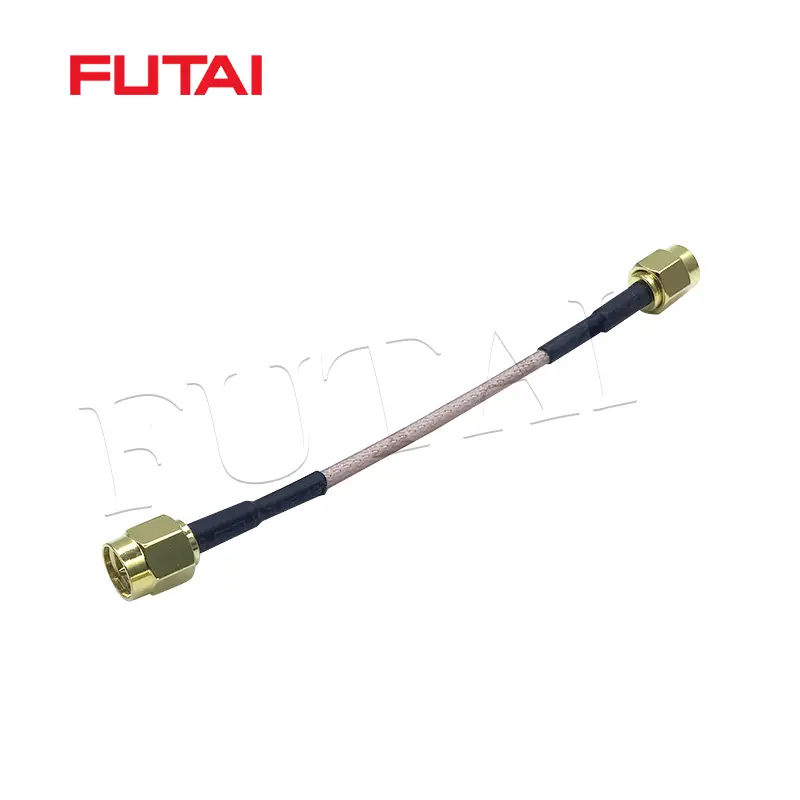

FT-SMAM-SMAM-316-100

Description:

Features:

RG PTFE high-temperature resistant coaxial cable has the characteristics of low loss, high operating frequency, good shielding, high reliability, small VSWR, and low attenuation.It is widely used in mobile data communication networks, aerospace, microwave communication equipment, and special environmental applications.
Customize different kinds of RF Coaxial Connector and RF Coaxial cable.

Online Inquiry

Specification

Product Model	FT-SMAM-SMAM-316-100
1、Product Description
Connector Name	SMA Male-SMA Male
2、Material & Specification
Cable Type	RG316 RG174
Cable length	100MM
Color	Brown
3、Material&Specification
Frequency Range	DC~6GHz
V.S.W.R	≤1.25
Impedance	50Ω
Centre Conductor Retention Range	≥0.25 N
Coupling nut Retention Force	≥180 N
Durability(mating)	≥500(cycles)
Max. Input Power (W)	50
4、Environmental & Mechanical Specification
Operating Temperature	-40℃ to +85℃
Storage Temperature	-40℃ to +85℃
Substance Compliance	RoHS
Weight	8g
Package Type	100PCS
