Specification
| Product Model | FT-SMAM-SMAM-142-1000 |
| 1、Product Description | |

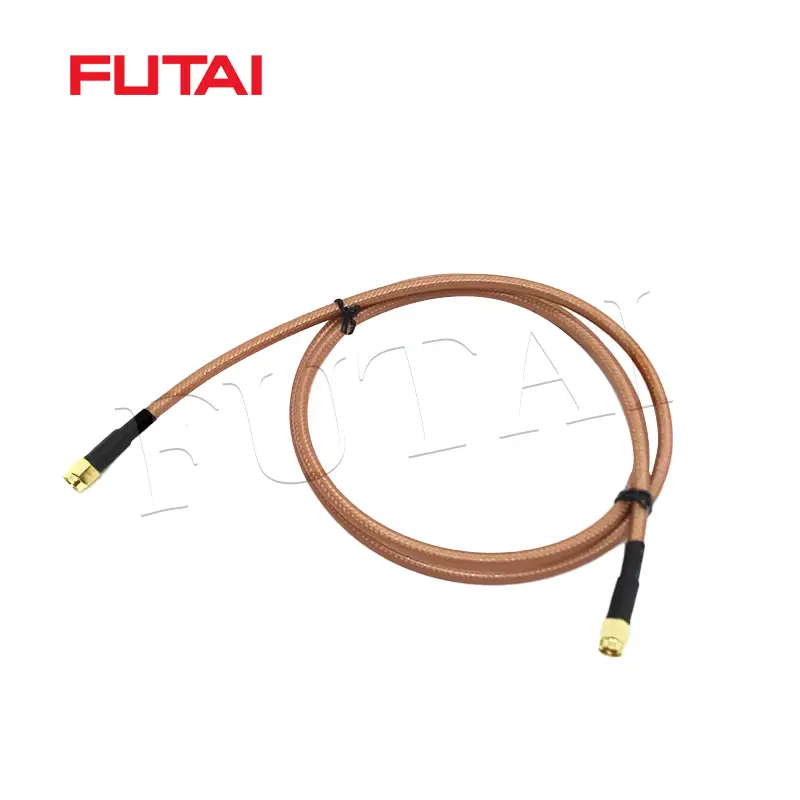

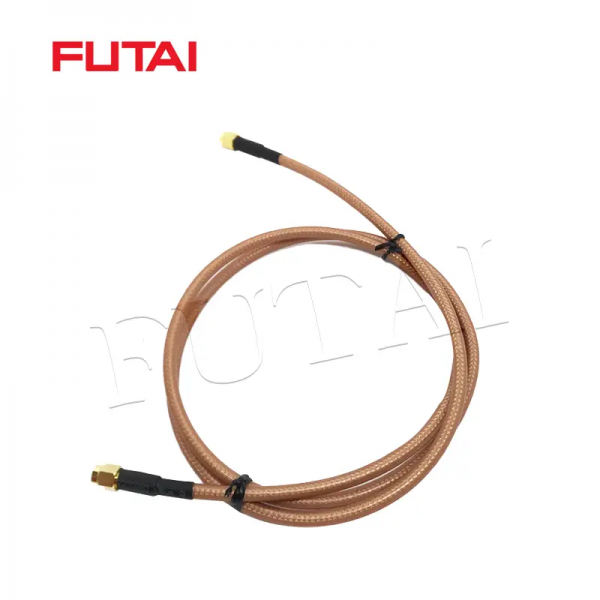

| Connector Name | SMA Male-SMA Male |
| 2、Material & Specification | |
| Cable Type | RG142 |
| Cable length | 1000MM |
| Color | Brown |
| 3、Material&Specification | |
| Frequency Range | DC~6GHz |
| V.S.W.R | ≤1.25 |
| Impedance | 50Ω |
| Centre Conductor Retention Range | ≥0.25 N |
| Coupling nut Retention Force | ≥180 N |
| Durability(mating) | ≥500(cycles) |
| Max. Input Power (W) | 50 |
| 4、Environmental & Mechanical Specification | |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -40℃ to +85℃ |
| Substance Compliance | RoHS |
| Weight | 61g |
| Package Type | 100PCS |
