Description:

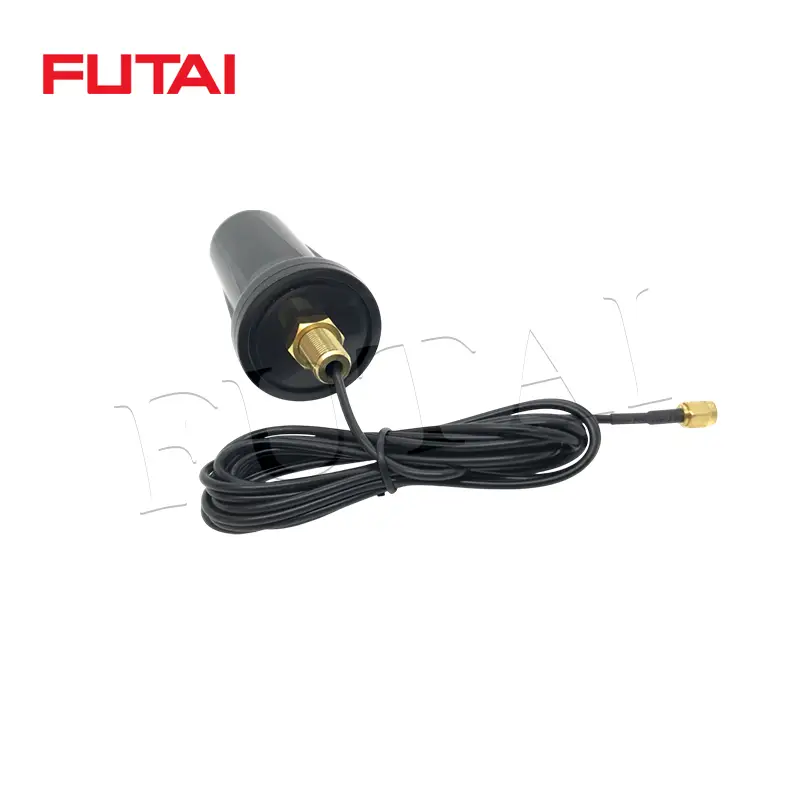

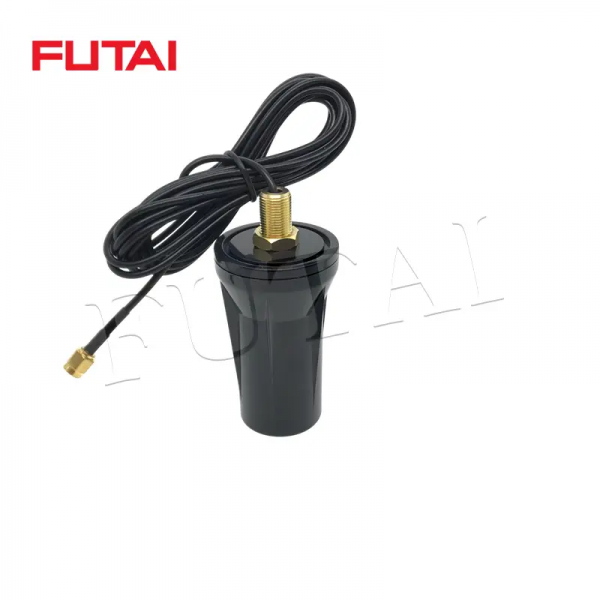

*Cabinet Antenna with SMA Male Connector.
Features:
*It is a broadband efficient omnidirectional antenna with a frequency range from 600MHz to 6000MHz,it is suitable for 2G, 3G, 4G and 5G networks,so it is an ideal choice for industrial and home using , widely used in smart cities, smart metering, electric vehicle charging, unmanned cabinet machines, etc.

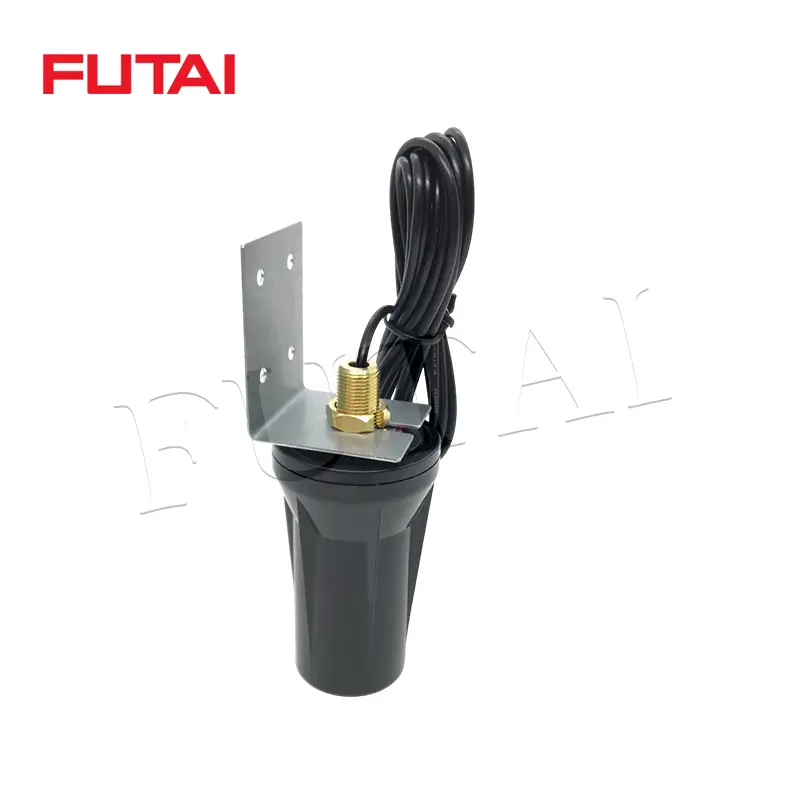

*Screw mounting, destruction-proof design, sturdy and durable so it is suitable for indoor and outdoor ,and it’s waterproof rating up to IP67.
*Customize and develope different kinds of Antenna according to customer requirement.
Specification
| Product Model | FT-SMAM-5GQ5M3-78 |
| Product Specification | |
| 1、Electrical | |
| Frequency Range | 690-960/1710-2700/3300一3800MHz |
| V.S.W.R | ≤2.0 |
| Gain | 5DBi |
| Polarization | Vertical |
| F Beam-Width.h-Plan | 360° |
| F Beam-Width.E-Plan | 50° |
| Impedance | 50Ω |
| Max. Input Power (W) | 20 |
| 2、Material & Specification | |
| Connector | SMA Male |
| Size | Φ34XΦ47X78mm |
| Color | Black |
| Cable Type | RG174 |
| Cable Length | 3000mm |
| Cable Color | Black |
| Mount Method | Fixing with screw Installation |
| Temperature Range | -40℃ to +85℃ |
| Substance Compliance | RoHS |
| Weight | 66g |
| Package Type | 100PCS |
Specialized in designing, manufacturing, and selling all kinds of RF Connectors, RF Adapters, Cable Assemblies and Antennas.
