Description:

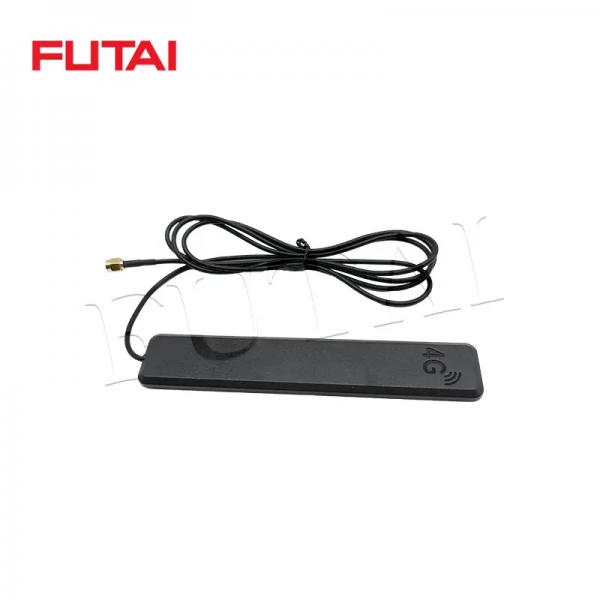

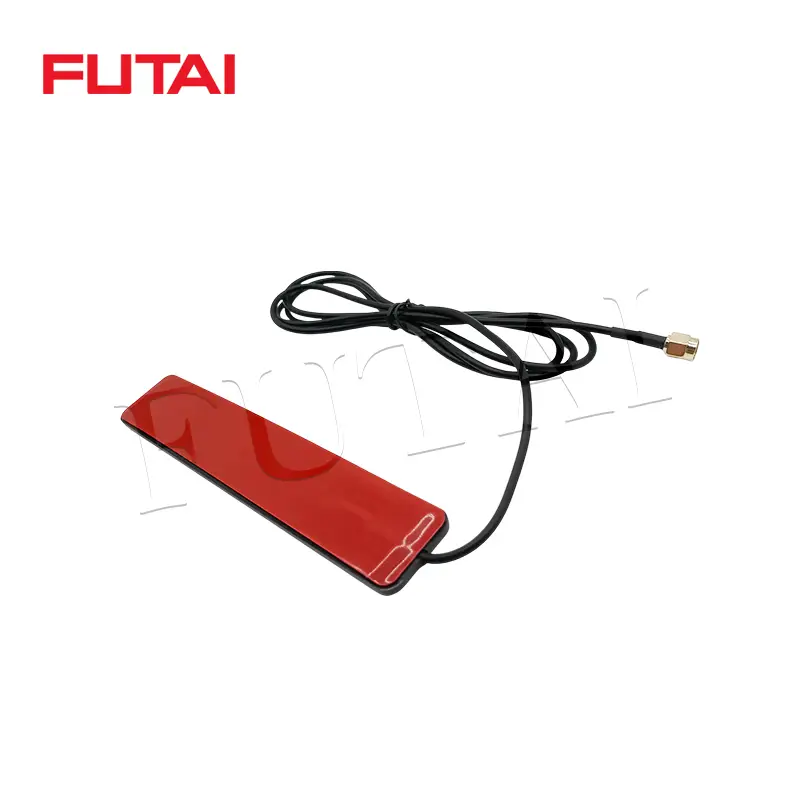

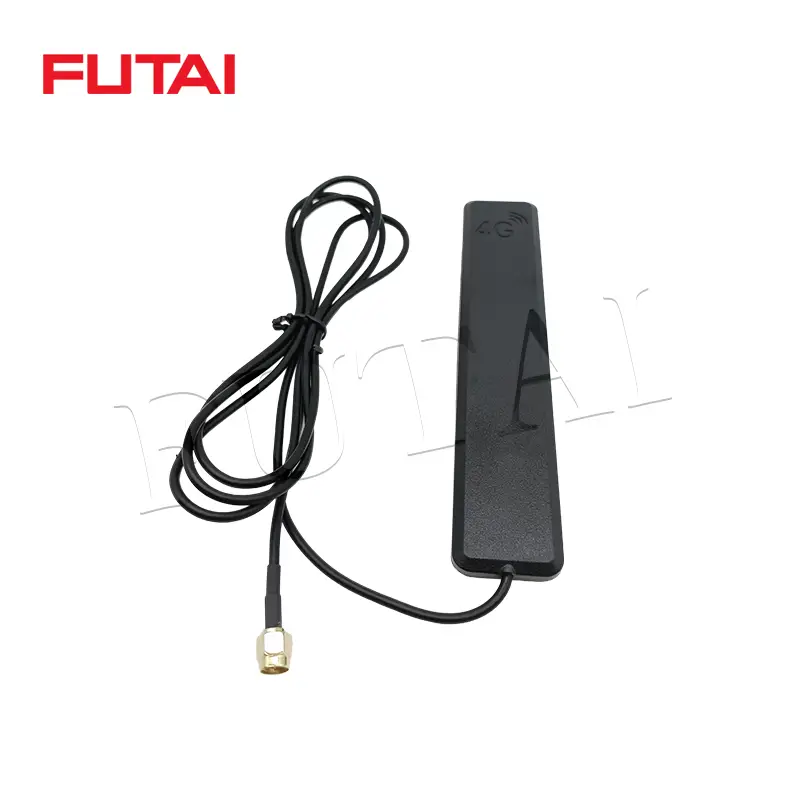

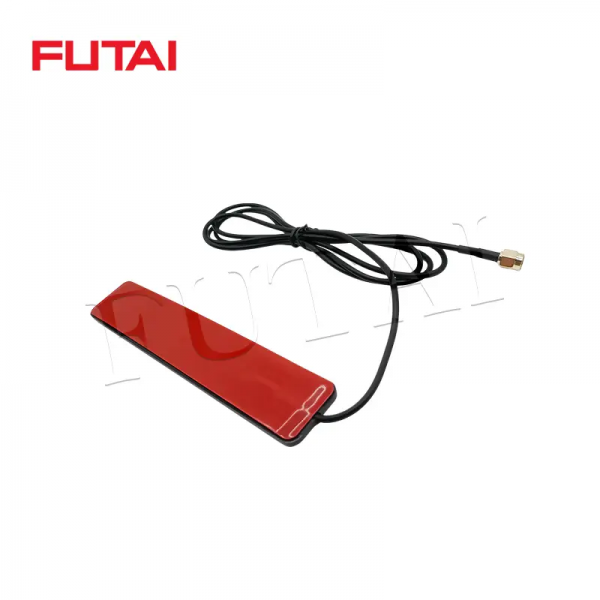

*Patch Antenna with SMA Male Connector.
Features:
*This is multiband antenna with 3M paste mounting which is flexible and convenient,so it is highly suitable for smart cities, smart metering, unmanned cabinet machines and other applications .
*Customize and develope different kinds of Antenna according to customer requirement.
Specification
| Product Model | FT-SMAM-5GM3-3 |
| Product Specification | |
| 1、Electrical | |
| Frequency Range | 690-960/1710-2700/3300一3800MHz |
| V.S.W.R | ≤2.0 |
| Gain | 3DBi |
| Polarization | Vertical |
| Impedance | 50Ω |
| Max. Input Power (W) | 20 |
| 2、Material & Specification | |
| Connector | SMA Male |
| Size | 21.7X115X6MM |
| Color | Black |
| Cable Type | RG174 |
| Cable Length | 1000mm |
| Cable Color | Black |
| Mount Method | 3M Paste |
| Temperature Range | 40℃ to +85 |
| Substance Compliance | RoHS |
| Weight | 23g |
| Package Type | 50PCS |
Specialized in designing, manufacturing, and selling all kinds of RF Connectors, RF Adapters, Cable Assemblies and Antennas.
FUTAI HONGKONG CO.,LTD
