Description:

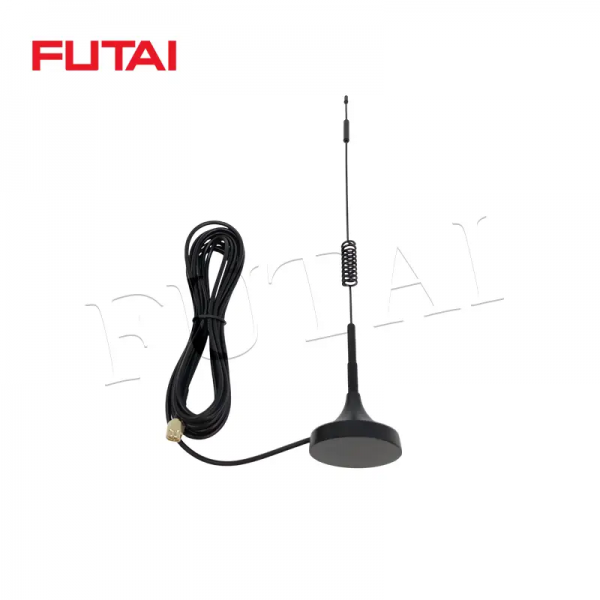

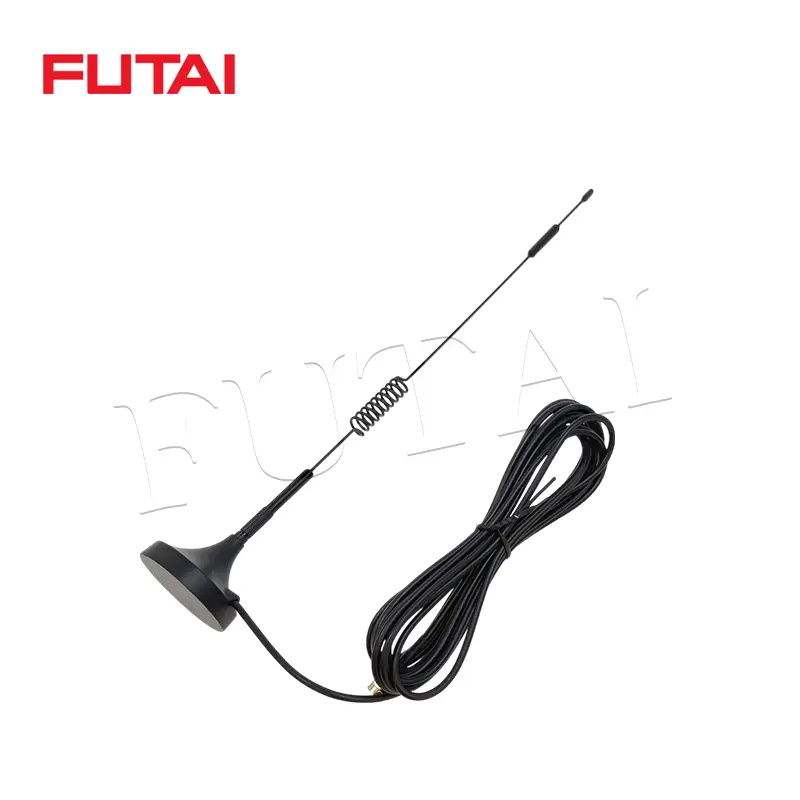

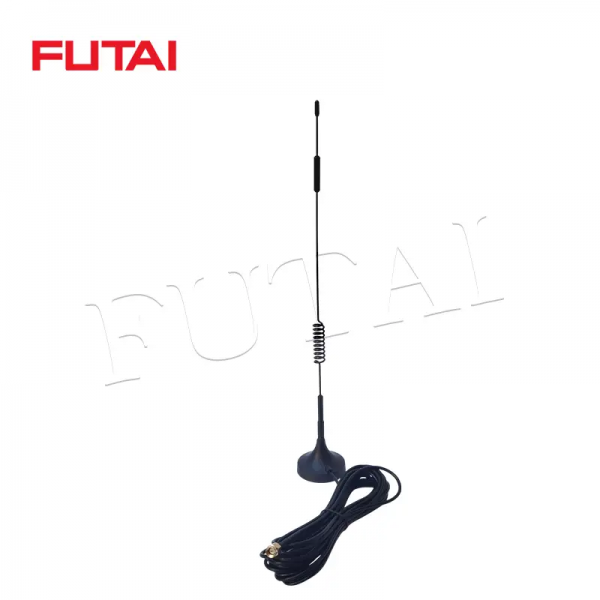

*Omnidirectional Antenna with N Male connector.
Features:
*Wireless access system,long distance transmission coverage；
*Digital trunking wireless communication system；
*Base station/repeater communication system；
*High gain,long transmission distance,good performance；
*Customize and develope different kinds of Antenna according to customer requirement.
Specification
| Product Model | FT-SMAM-4GQ7M3-320 |
| Product Specification | |
| 1、Electrical | |
| Frequency Range | 690-960/1710-2700MHz |
| V.S.W.R | ≤2.0 |
| Gain | 7DBi |
| Polarization | Vertical |
| F Beam-Width.h-Plan | 360° |
| F Beam-Width.E-Plan | 50° |
| Impedance | 50Ω |
| Max. Input Power (W) | 20 |
| 2、Material & Specification | |
| Connector | SMA Male |
| Size | Φ30X320mm |
| Color | Black |
| Cable Type | RG174 |
| Cable Length | 3000mm |
| Cable Color | Black |
| Mount Method | Magnetic Installation |
| Temperature Range | 40℃ to +85 |
| Substance Compliance | RoHS |
| Weight | 78g |
| Package Type | 50PCS |
Specialized in designing, manufacturing, and selling all kinds of RF Connectors, RF Adapters, Cable Assemblies and Antennas.
