Specification

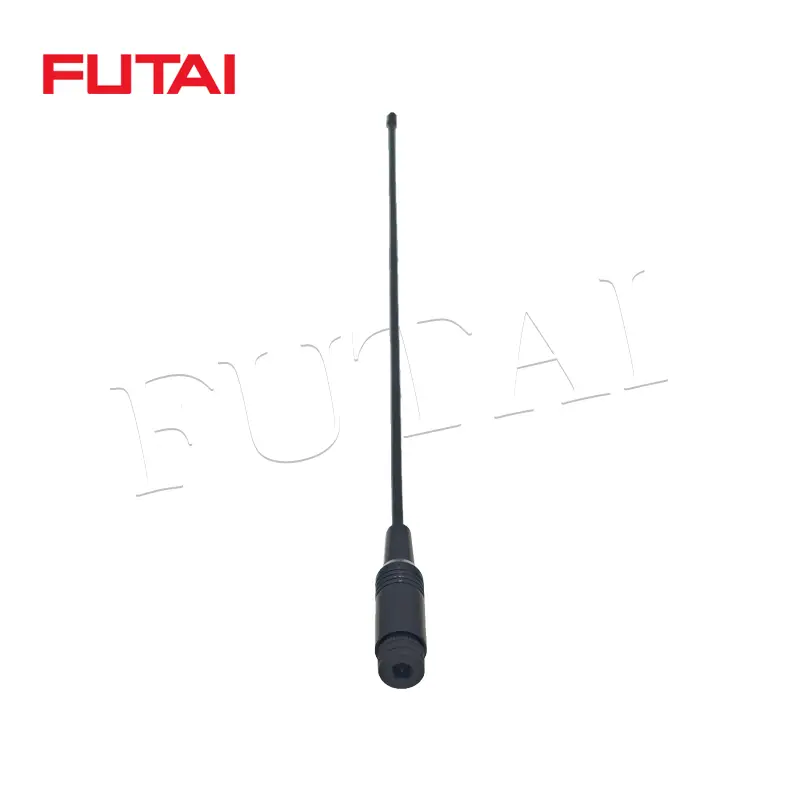

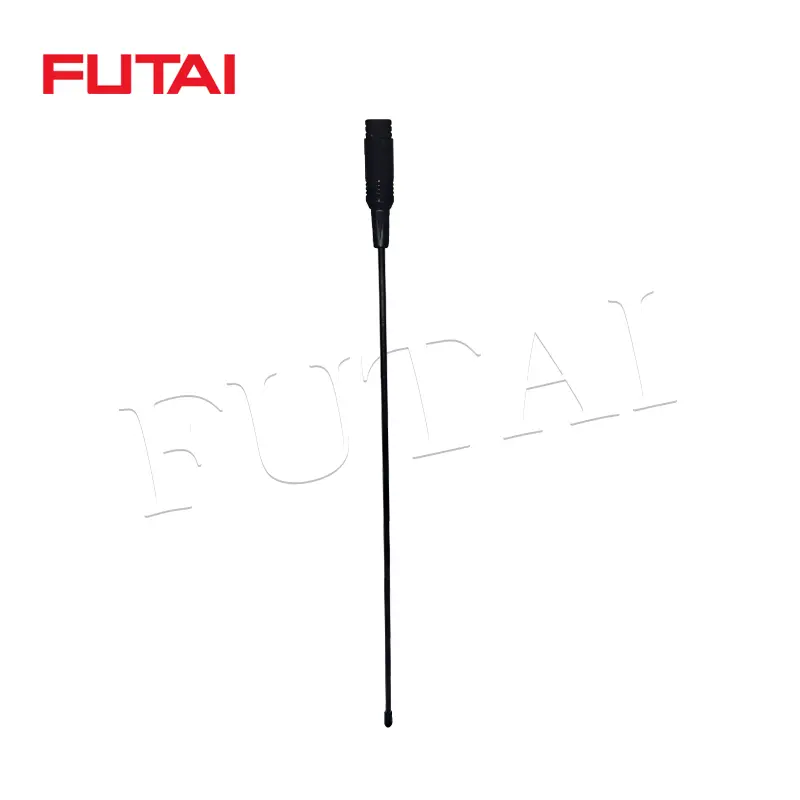

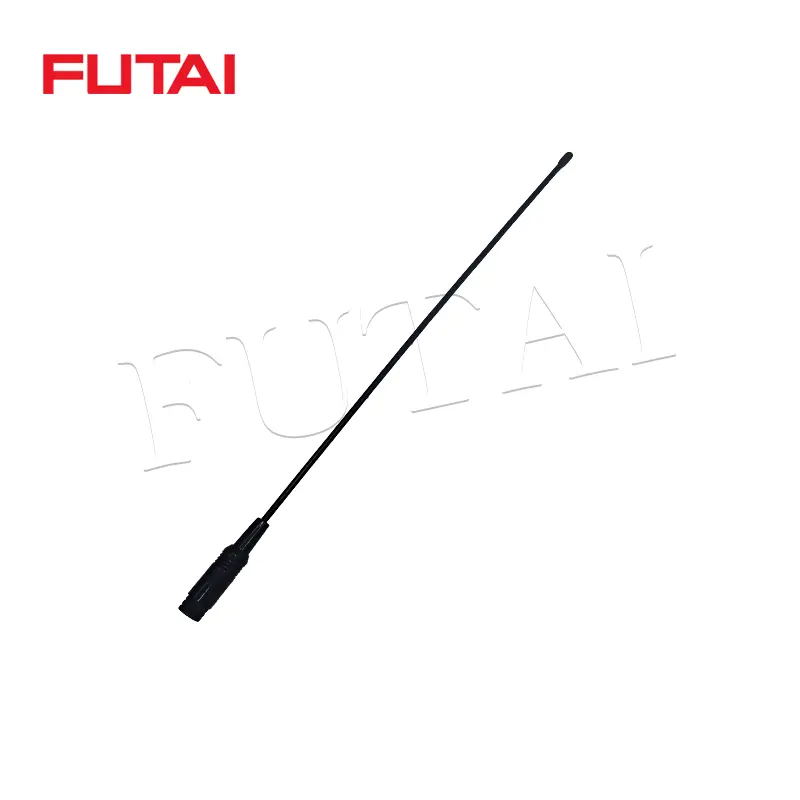

| Product Model | FT-SMAM-4GQ3R3-184 |
| Product Specification | |
| 1、Electrical | |
| Frequency Range | 690-960/1710-2700MHz |
| V.S.W.R | ≤2.0 |
| Gain | 3DBi |
| Polarization | Vertical |
| F Beam-Width.h-Plan | 360° |
| F Beam-Width.E-Plan | 40° |
| Impedance | 50Ω |
| Max. Input Power (W) | 20 |
| 2、Material & Specification | |
| Connector | SMA Male |
| Size | Φ13X184mm |
| Color | Black |
| Cable Color | Black |
| Temperature Range | -40℃ to +85℃ |
| Substance Compliance | RoHS |
| Weight | 28g |
| Package Type | 50PCS |
