Description:

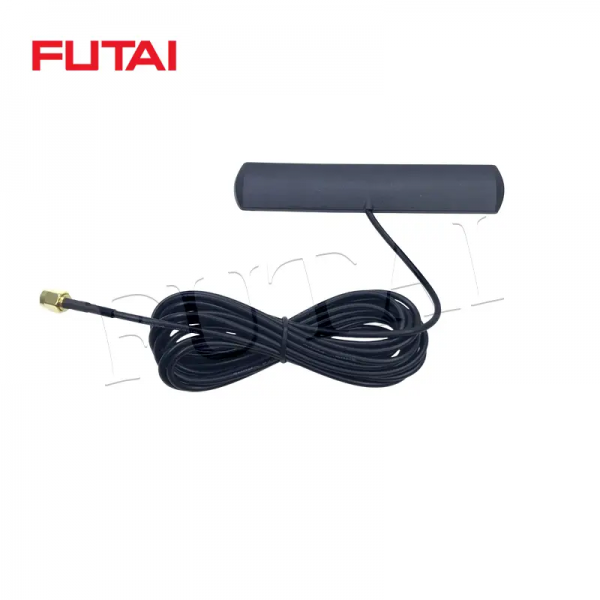

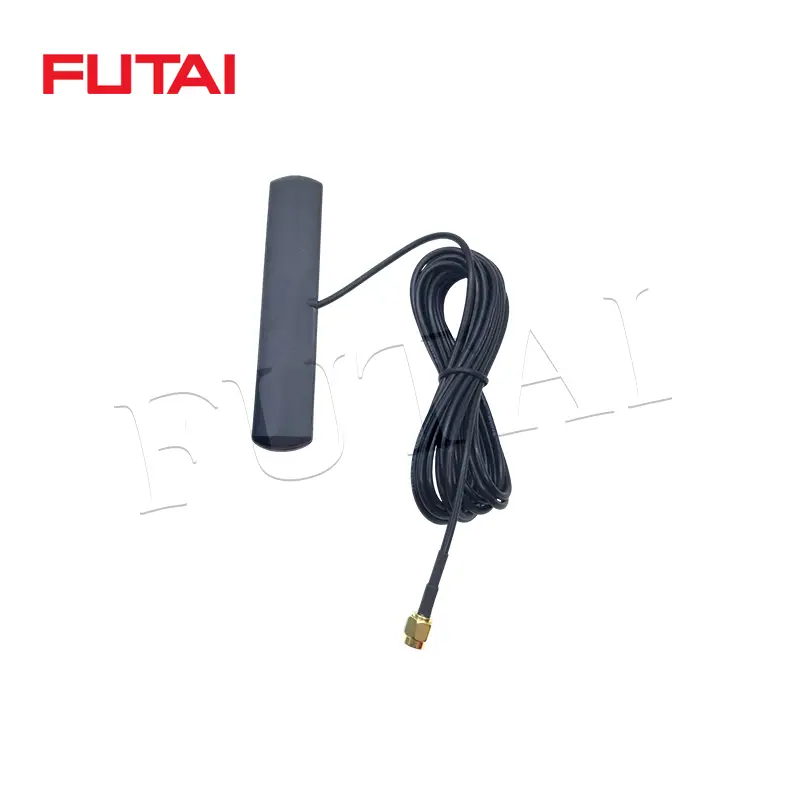

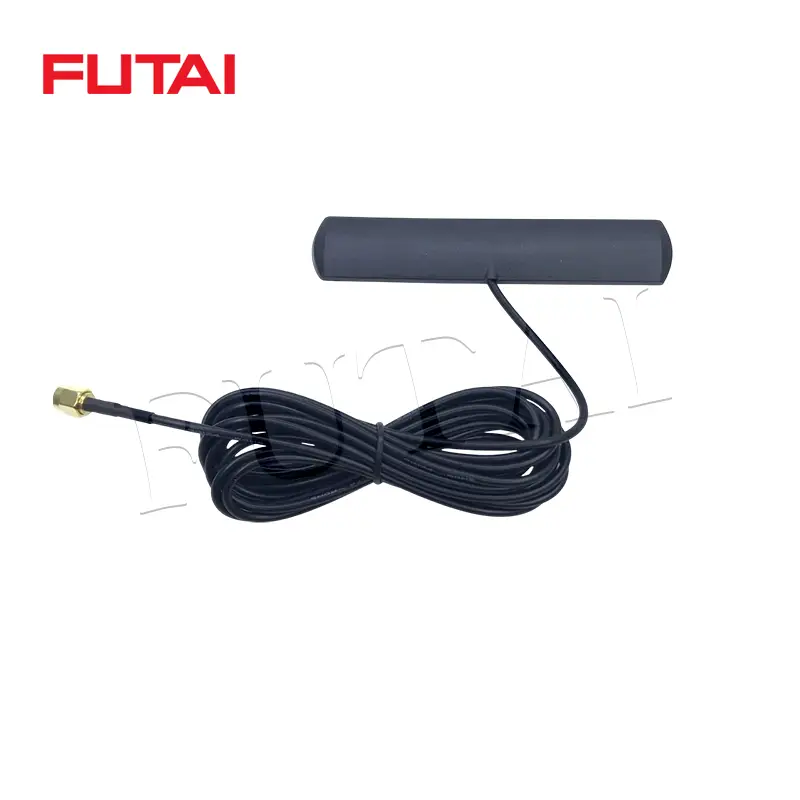

*Patch Antenna with SMA Male Connector.
Features:

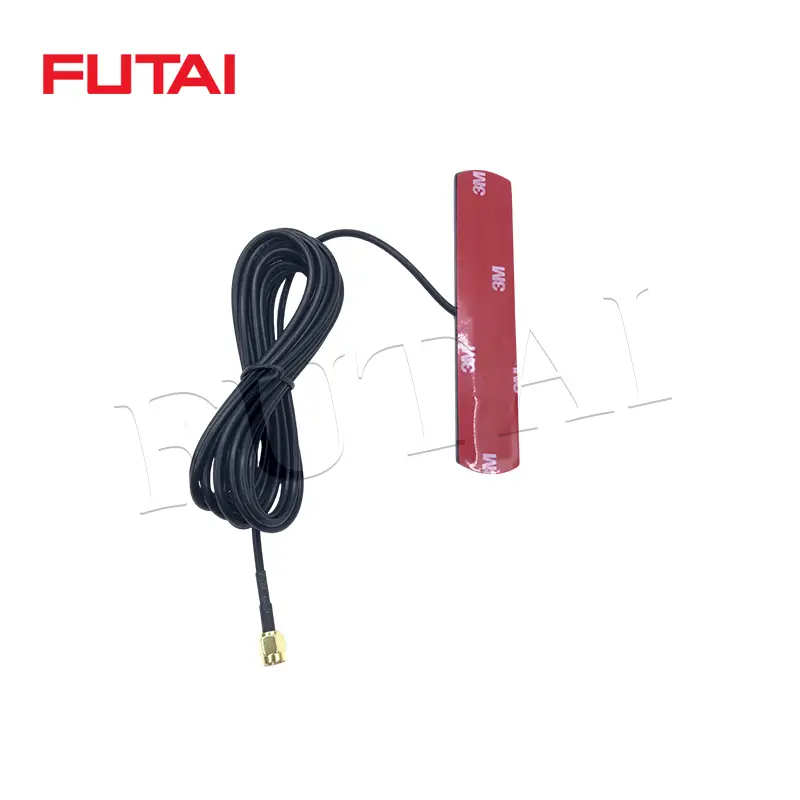

*This is multiband antenna with 3M Paste mounting which is flexible and convenient,so it is highly suitable for smart cities, smart metering, unmanned cabinet machines and other applications.
*Customize and develope different kinds of Antenna according to customer requirement.
Specification
| Product Model | FT-SMAM-24G3M-03 |
| Product Specification | |
| 1、Electrical | |
| Frequency Range | 2400～2500MHz |
| V.S.W.R | ≤2.0 |
| Gain | 5DBi |
| Polarization | Vertical |
| F Beam-Width.h-Plan | 360° |
| F Beam-Width.E-Plan | 50° |
| Impedance | 50Ω |
| Max. Input Power (W) | 20 |
| 2、Material & Specification | |
| Connector | SMA Male |
| Size | Φ22X110mm |
| Color | Black |
| Cable Type | RG174 |
| Cable Length | 3000mm |
| Cable Color | Black |
| Mount Method | 3M Paste |
| Temperature Range | 40℃ to +85 |
| Substance Compliance | RoHS |
| Weight | 45.3g |
| Package Type | 50 PCS |
Specialized in designing, manufacturing, and selling all kinds of RF Connectors, RF Adapters, Cable Assemblies and Antennas.
