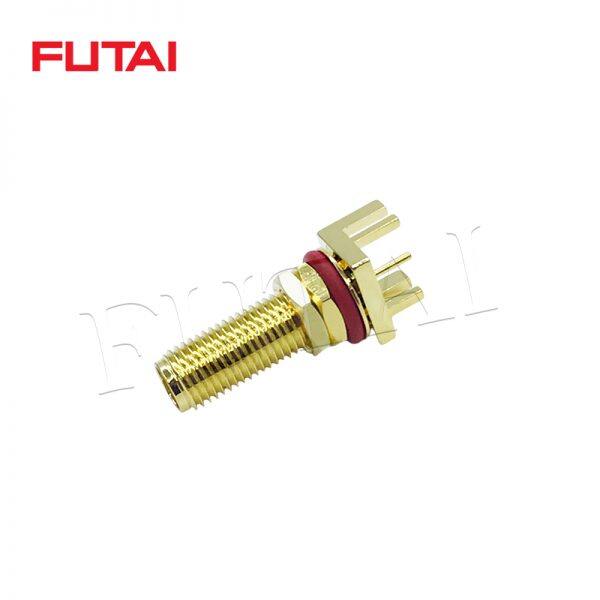

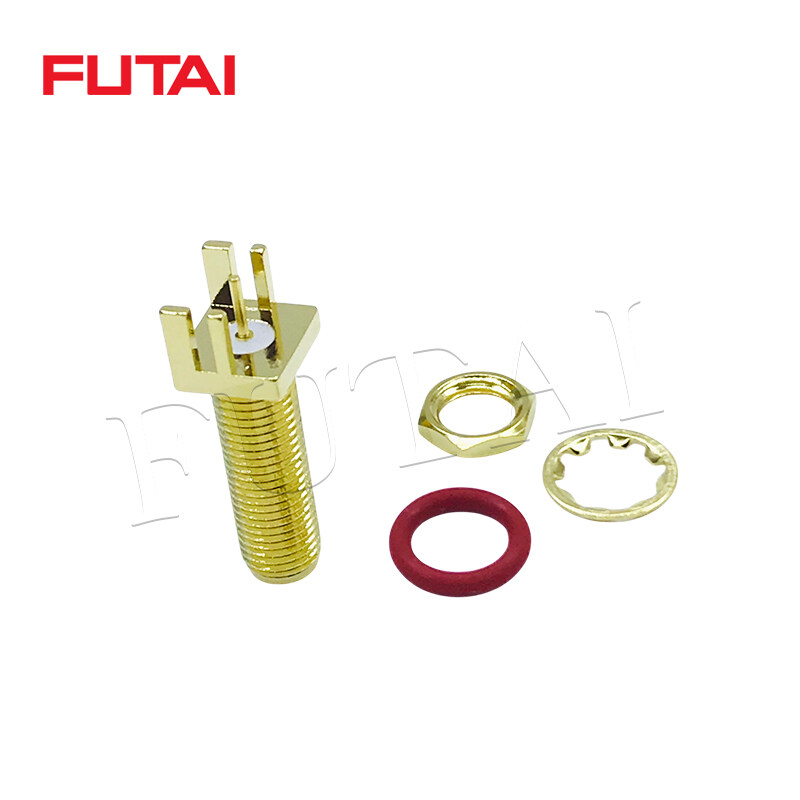

FT-SMAFIP-PCB-25.6

Description:

Features:

SMA Female Connector has wide frequency range, adopts threaded connection and has better mechanical properties,and it is widely used in aviation, radar, microwave communication, wireless network, program control, Unmanned Aerial Vehicle, walkie-talkie, 5G communication and other fields.
Professional manufacturer, support customization, quality assurance, fast delivery.

Online Inquiry

Specification

Product Model	FT-SMAFIP-PCB-25.6
1、Product Description
Connector Name	SMA Female
Mount Method	PCB
Mount Method	Weld
2、Electrical
Frequency Range	DC~11GHz
V.S.W.R	≤1.25
Impedance	50Ω
Insertion Loss	≤0.15dB
Centre Conductor Retention Range	≥0.25 N
Coupling nut Retention Force	≥180 N
Durability(mating)	≥500(cycles)
Max. Input Power (W)	50
3、Material & Plating
Center pin contact	Brass Beryllium Copper/ Gold Plating
Outer contact & Body	Brass H59-1/ Gold Plating
Dielectric Insulator	PTFE
4、Environmental & Mechanical Specification
Operating Temperature	-40℃ to +85℃
Storage Temperature	-40℃ to +85℃
Substance Compliance	RoHS
Weight	4.3g
Package Type	100PCS
