FT-SMAFIP-178A

Description:

Features：

SMA Female connector has wide frequency range, adopts threaded connection and has better mechanical properties,and it is widely used in aviation, radar, microwave communication, wireless network, program control, Unmanned Aerial Vehicle, walkie-talkie, 5G communication and other fields.
Professional manufacturer, support customization, quality assurance, fast delivery.

Online Inquiry

Specification

Product Model	FT-SMAFIP-178A
1、Product Description

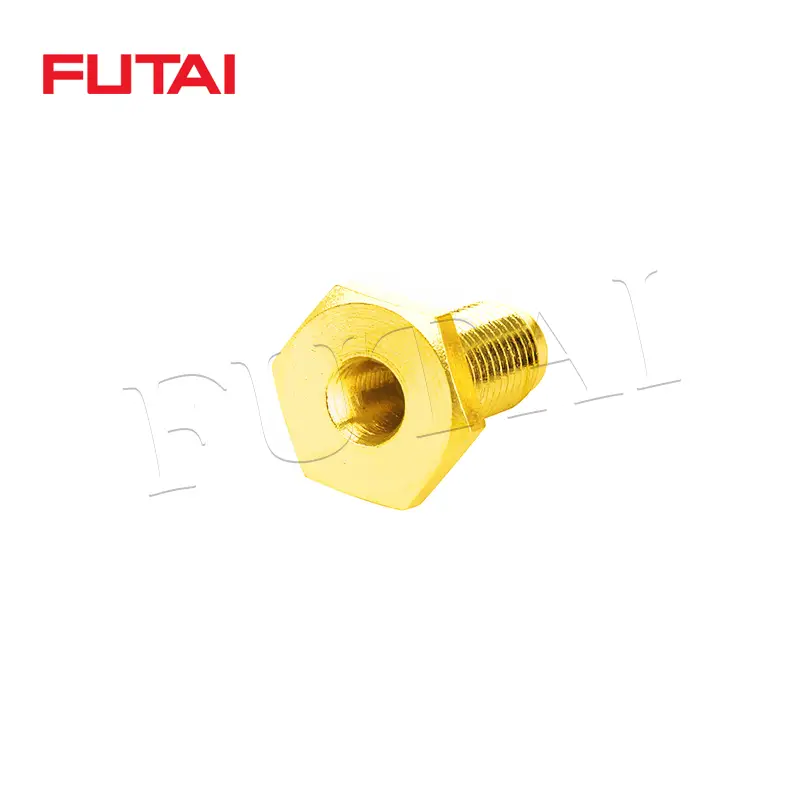

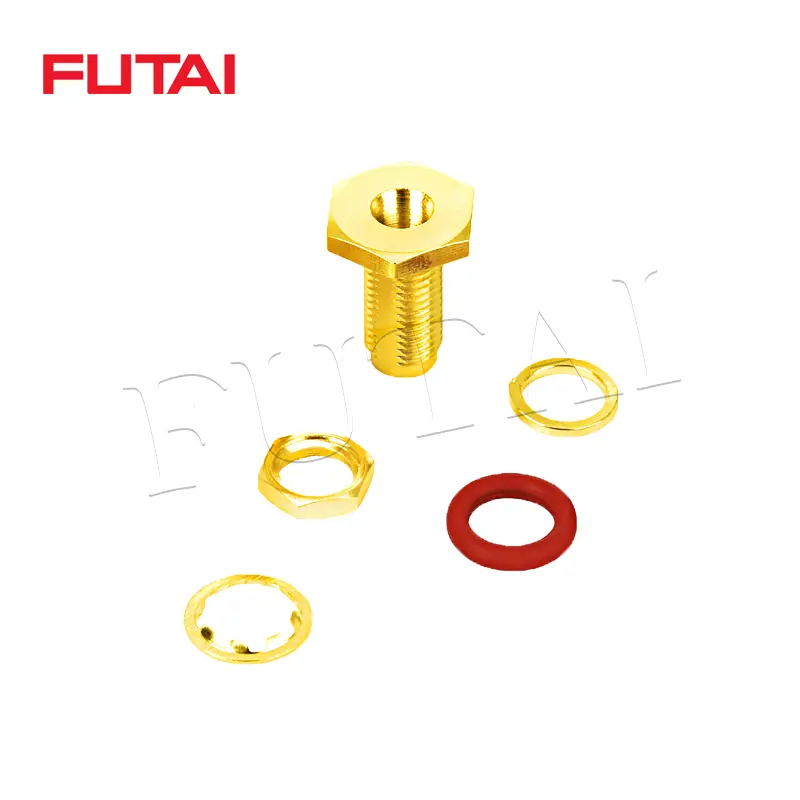

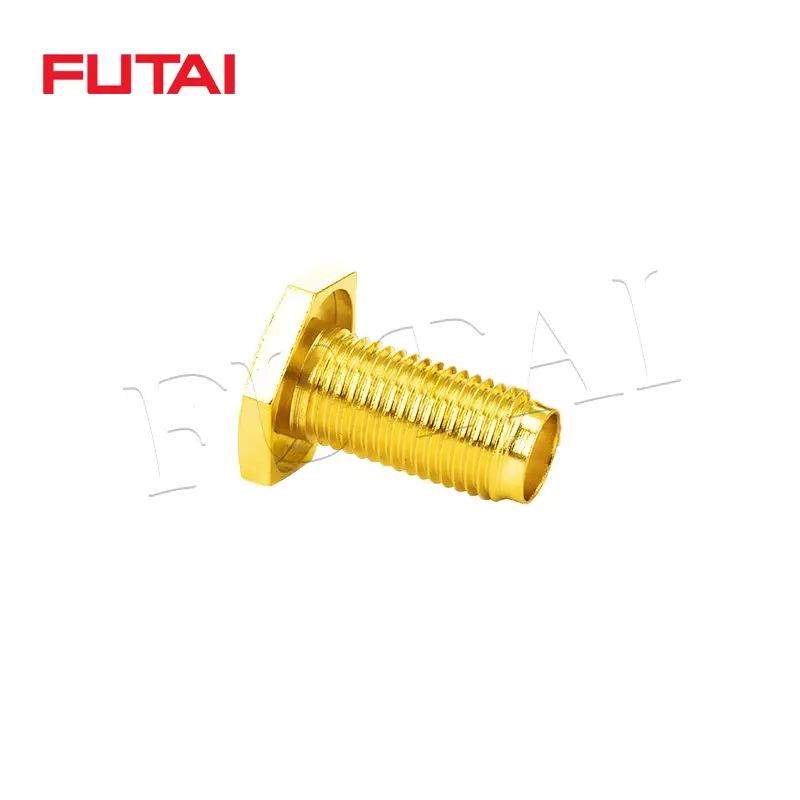

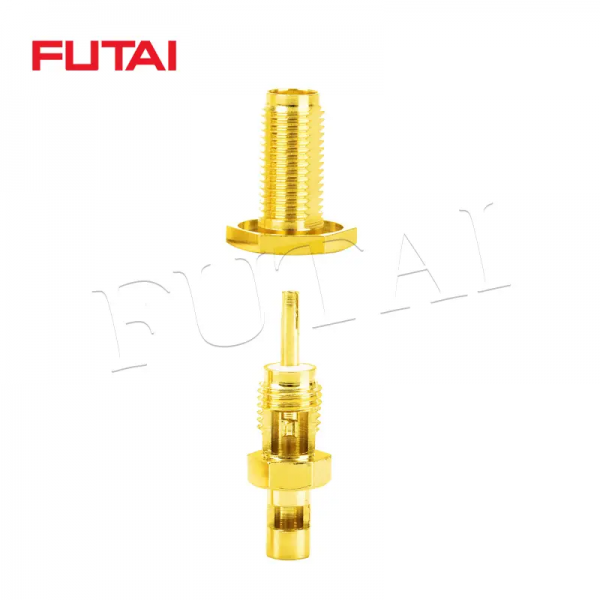

Connector Name	SMA Female
Cable	RG178
Mount Method	Weld
2、Electrical
Frequency Range	DC~11GHz
V.S.W.R	≤1.25
Impedance	50Ω
Insertion Loss	≤0.15dB
Centre Conductor Retention Range	≥0.25 N
Coupling nut Retention Force	≥180 N
Durability(mating)	≥500(cycles)
Max. Input Power (W)	50
3、Material & Plating
Center pin contact	Brass Beryllium Copper/ Gold Plating
Outer contact & Body	Brass H59-1/ Gold Plating
Dielectric Insulator	PTFE
Gasket	Silicone Rubber
Crimp ferrule	Brass/ Nickel Plating
4、Environmental & Mechanical Specification
Operating Temperature	-40℃ to +85℃
Storage Temperature	-40℃ to +85℃
Substance Compliance	RoHS
Weight	3g
Package Type	100PCS
