FT-RPSMAM-NF-240-600

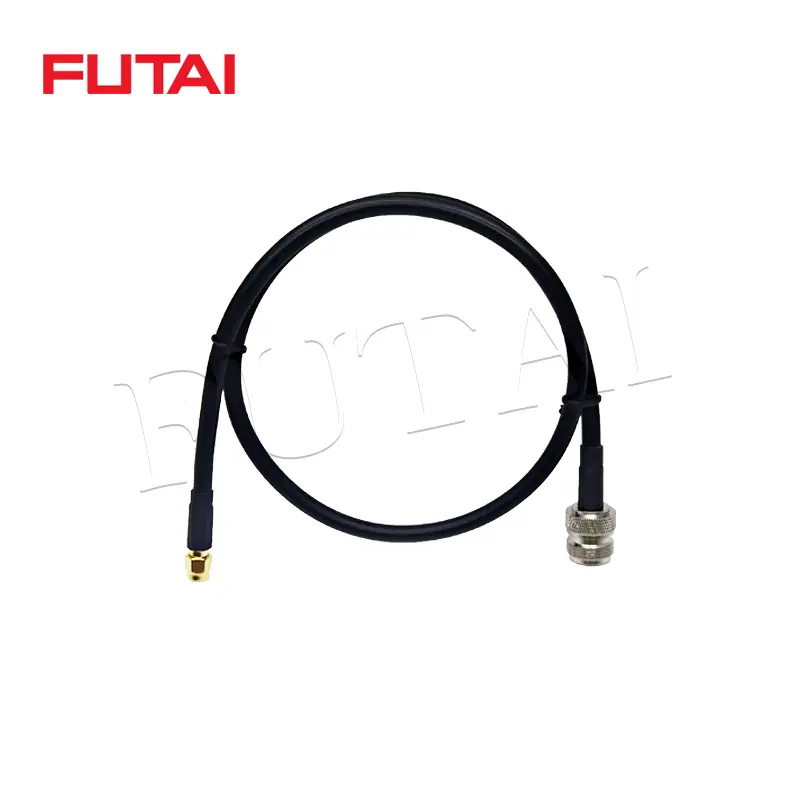

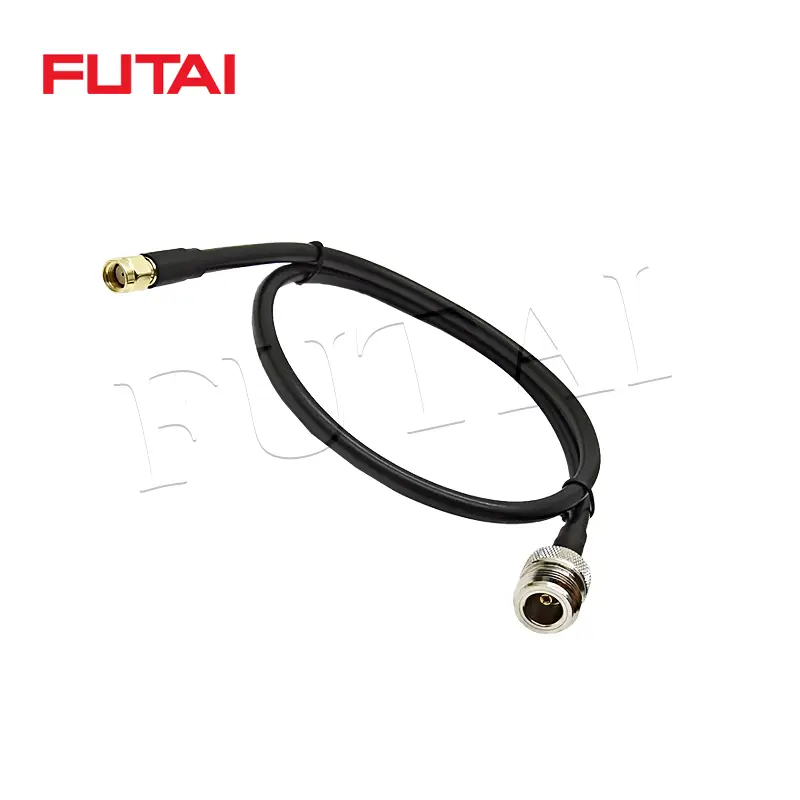

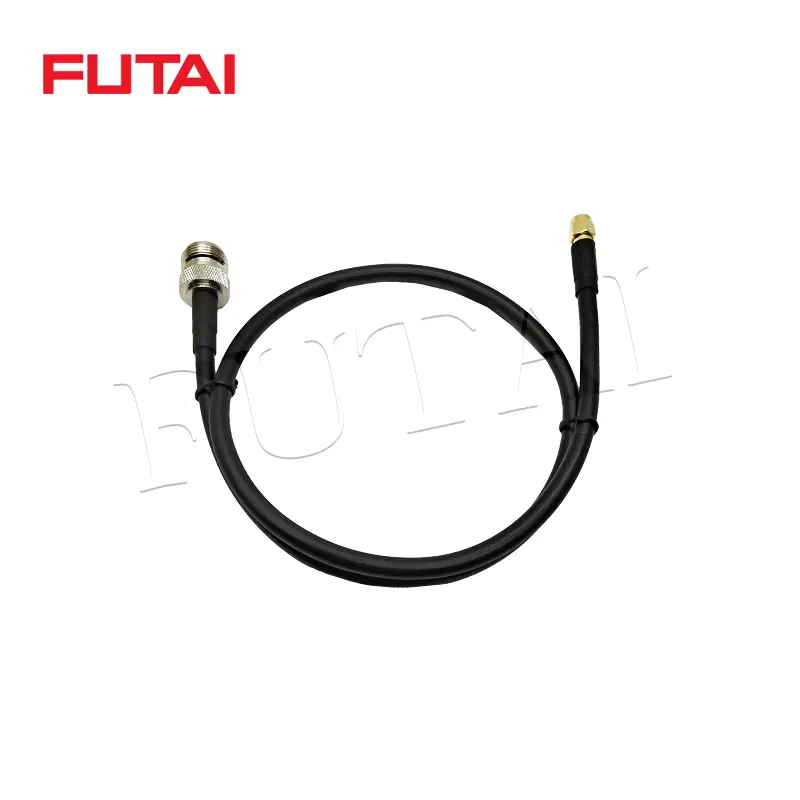

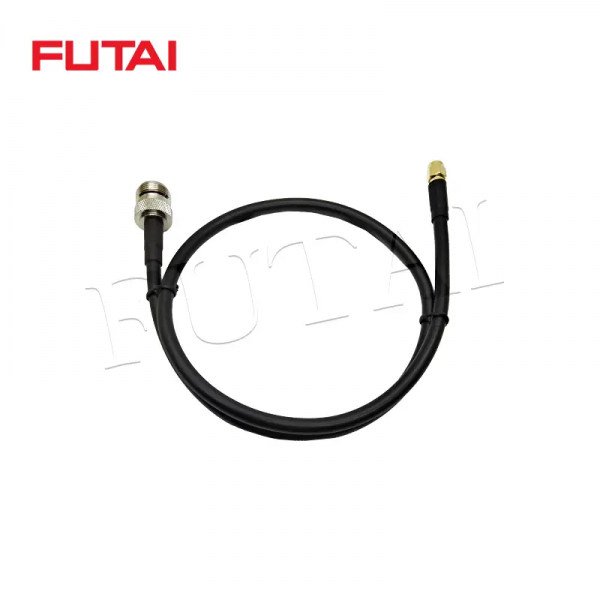

RPSMA Male to N Female Connector with LMR240 600mm Black Cable.

Online Inquiry

Feature:

LMR flexible foamed coaxial cable has the characteristics of low loss, high operating frequency, good shielding, strong reliability, small VSWR, low attenuation.It is widely used in mobile, microwave communication, radar, military equipment, civil radio and other equipment to transmit high-frequency signals.
Customize different kinds of RF Coaxial Connector and RF Coaxial cable.

Specification

Product Model	FT-RPSMAM-NF-240-600
1、Product Description
Connector Name	RP SMA Male-N Female
2、Material & Specification
Cable Type	LMR240
Cable length	600MM
Color	Black
3、Material&Specification
Frequency Range	DC~6GHz
V.S.W.R	≤1.25
Impedance	50Ω
Centre Conductor Retention Range	≥0.25 N
Coupling nut Retention Force	≥180 N
Durability(mating)	≥500(cycles)
Max. Input Power (W)	20
4、Environmental & Mechanical Specification
Operating Temperature	-40℃ to +85℃
Storage Temperature	-40℃ to +85℃
Substance Compliance	RoHS
Weight	54g
Package Type	100PCS
