Description:
*Built-In Antenna with SMA Male Connector.
Features:

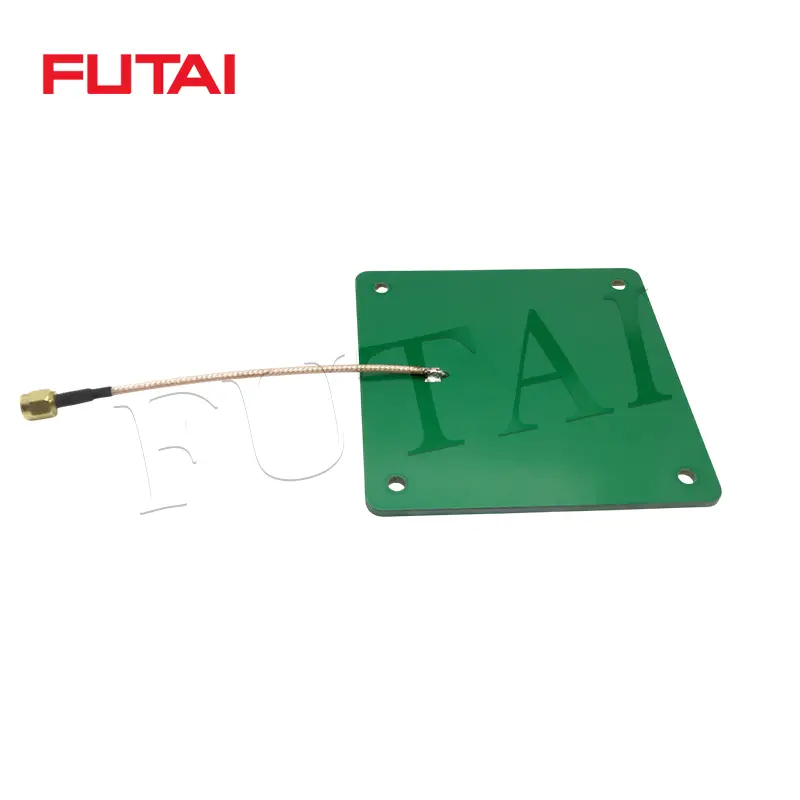

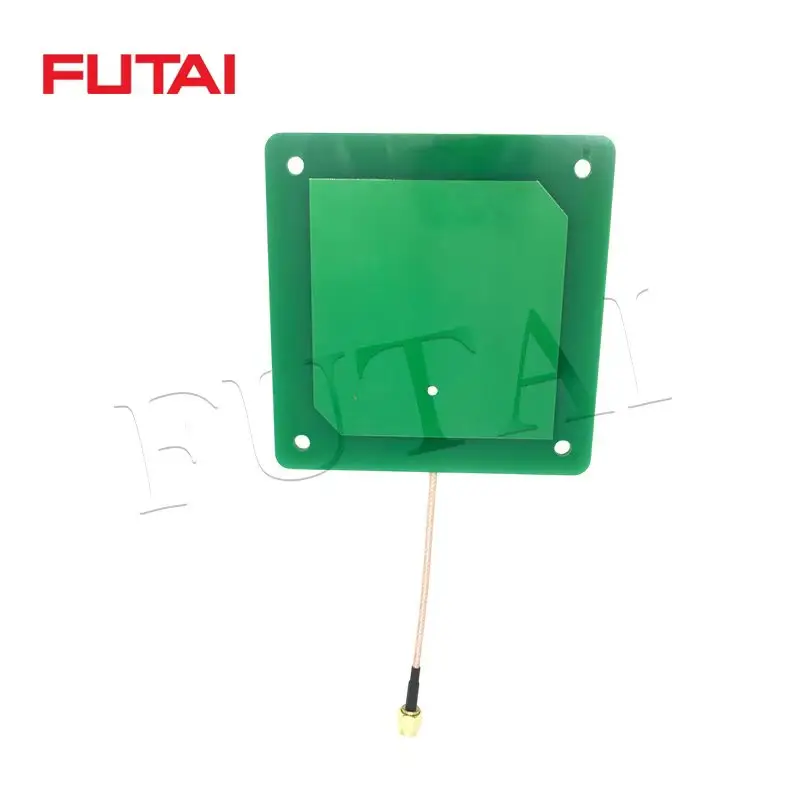

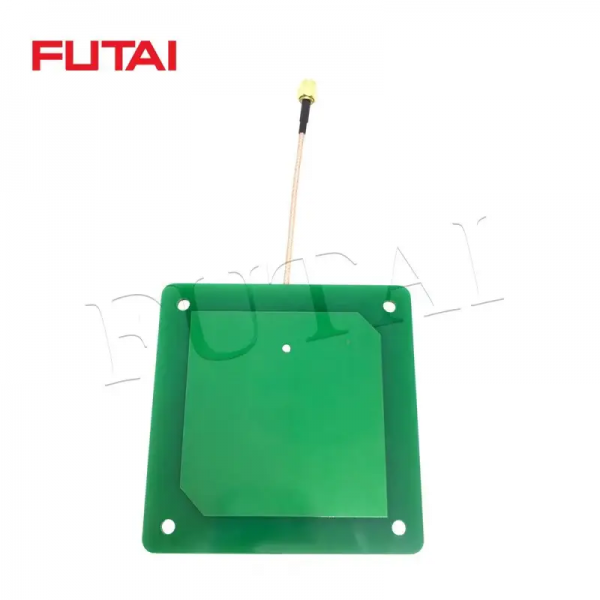

*The PCB embedded antenna is a highly integrated hidden antenna.It is directly printed on the PCB board with 3M adhesive on the back.It is suitable for use with hidden and modular devices,so as to achieve the purpose of simplicity, efficiency, convenience and concealment.
*Customize and develope different kinds of Antenna according to customer requirement.
Specification
| Product Model | FT-RFID-SMAM-316-100 |
| Product Specification | |
| 1、Electrical | |
| Frequency Range | 858～878MHz |
| V.S.W.R | ≤2.0 |
| Gain | 3DBi |
| Polarization | Omnidirectional |
| Impedance | 50Ω |
| Max. Input Power (W) | 5 |
| 2、Material & Specification | |
| Connector | SMA Male |
| Size | 100X100X4MM |
| Material | RF4 |
| Color | Green |
| Cable Type | RG316 |
| Cable Length | 100mm |
| Cable Color | Brown |
| Temperature Range | -40℃ to +85℃ |
| Substance Compliance | RoHS |
| Weight | 70g |
| Package Type | 100PCS |
