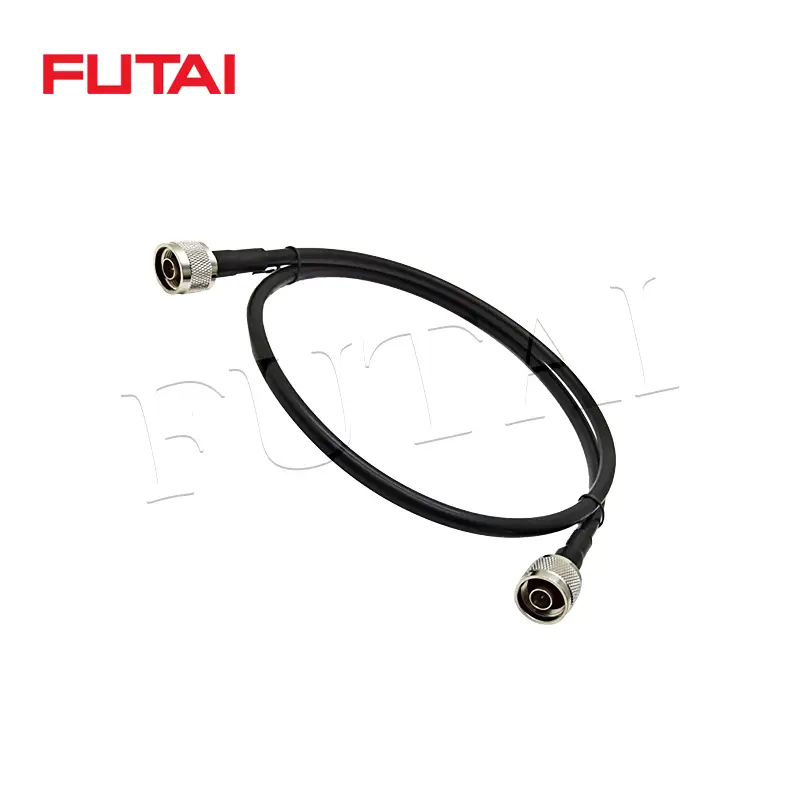

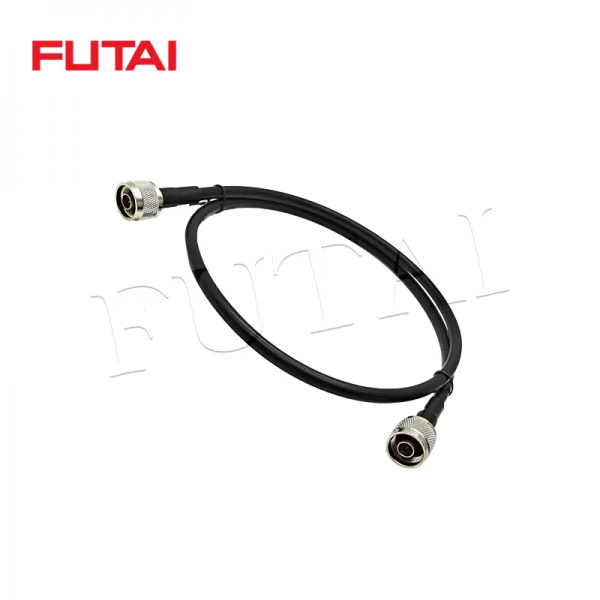

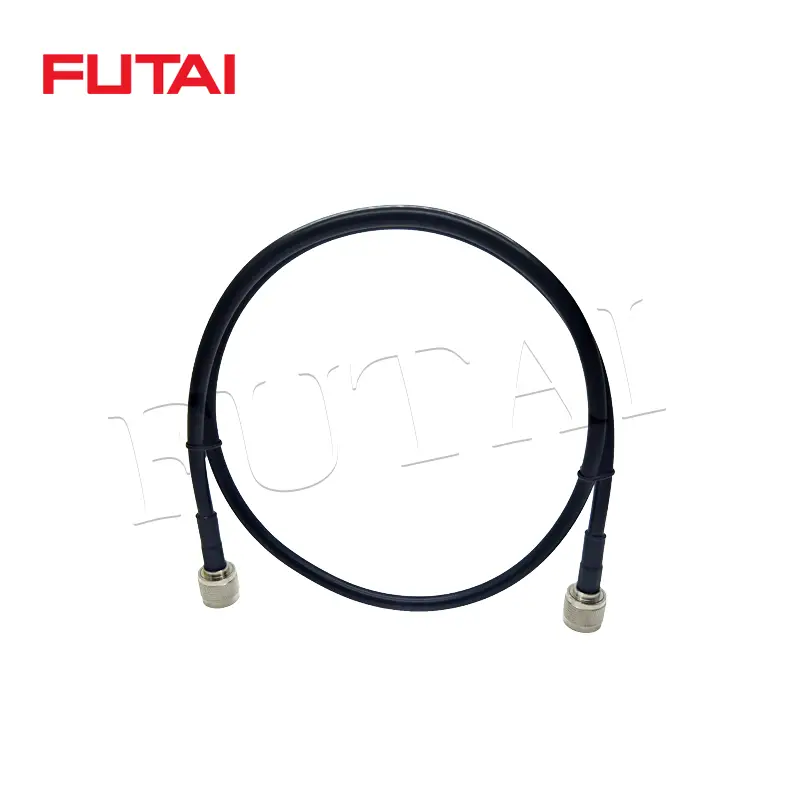

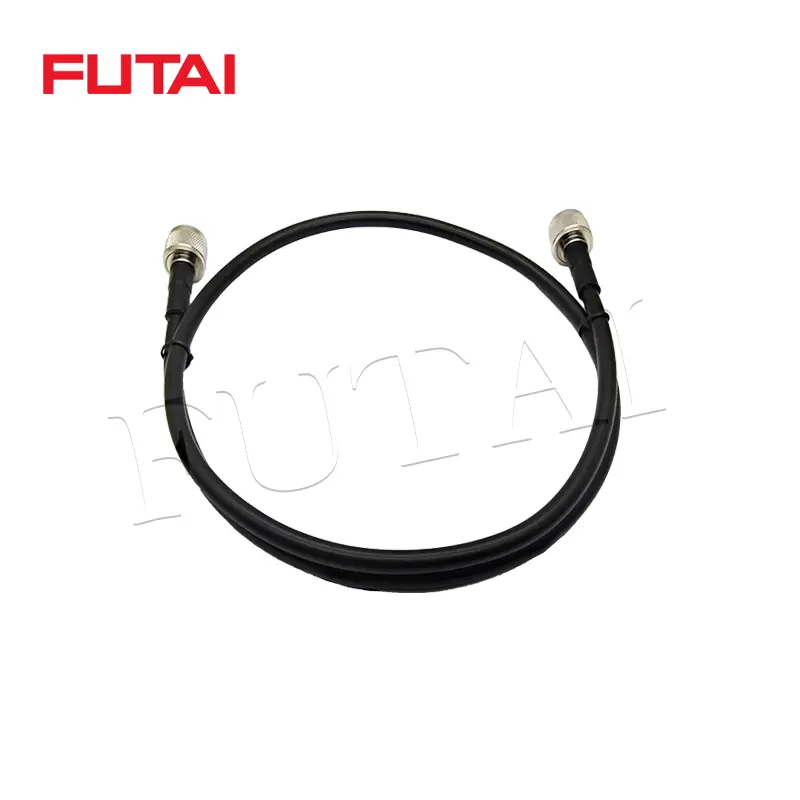

FT-NM-NM-300-1000

Description:

Feature:

LMR flexible foamed coaxial cable has the characteristics of low loss, high operating frequency, good shielding, strong reliability, small VSWR, low attenuation.It is widely used in mobile, microwave communication, radar, military equipment, civil radio and other equipment to transmit high-frequency signals.
Customize different kinds of RF Coaxial Connector and RF Coaxial cable.

Online Inquiry

Specification

Product Model	FT-NM-NM-300-1000
1、Product Description
Connector Name	N Male-N Male
2、Material & Specification
Cable Type	LMR300
Cable length	1000MM
Color	Black
3、Material&Specification
Frequency Range	DC~6GHz
V.S.W.R	≤1.25
Impedance	50Ω
Centre Conductor Retention Range	≥0.25 N
Coupling nut Retention Force	≥180 N
Durability(mating)	≥500(cycles)
Max. Input Power (W)	20
4、Environmental & Mechanical Specification
Operating Temperature	-40℃ to +85℃
Storage Temperature	-40℃ to +85℃
Substance Compliance	RoHS
Weight	132g
Package Type	100PCS
