Description:

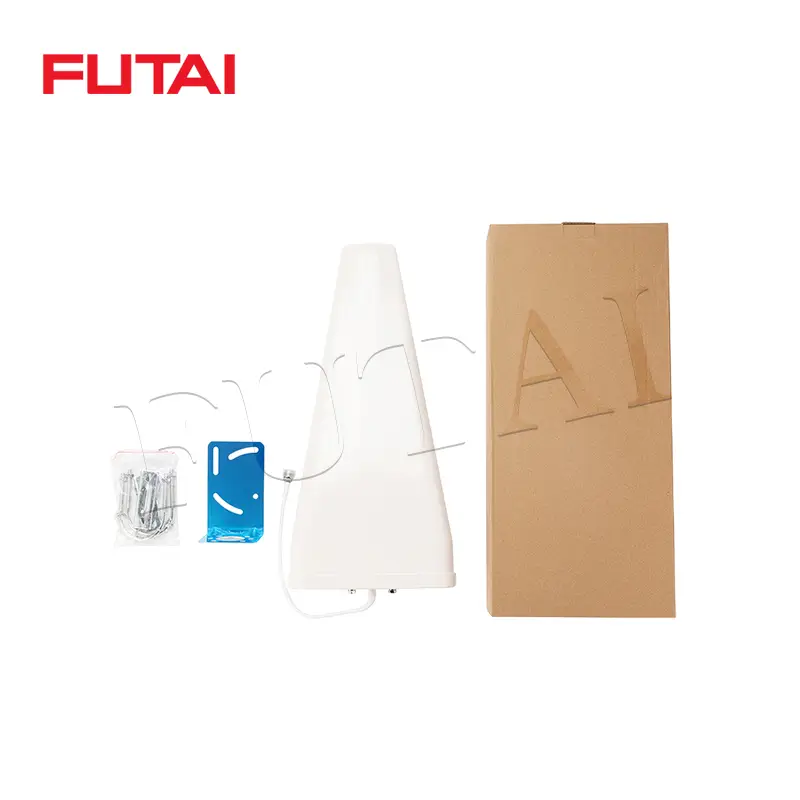

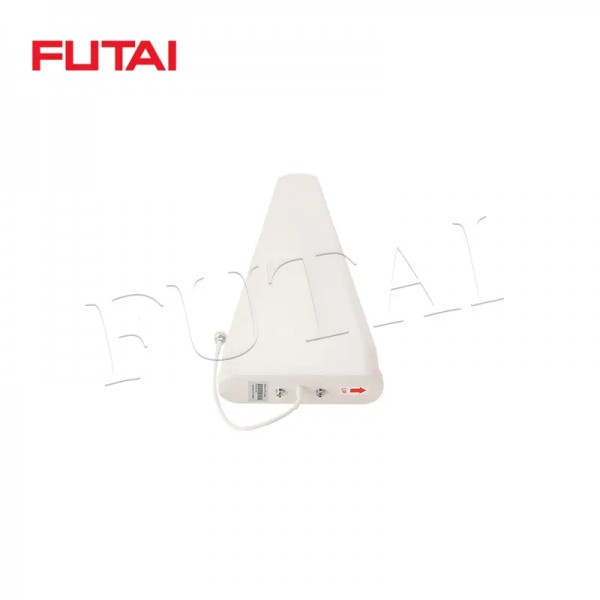

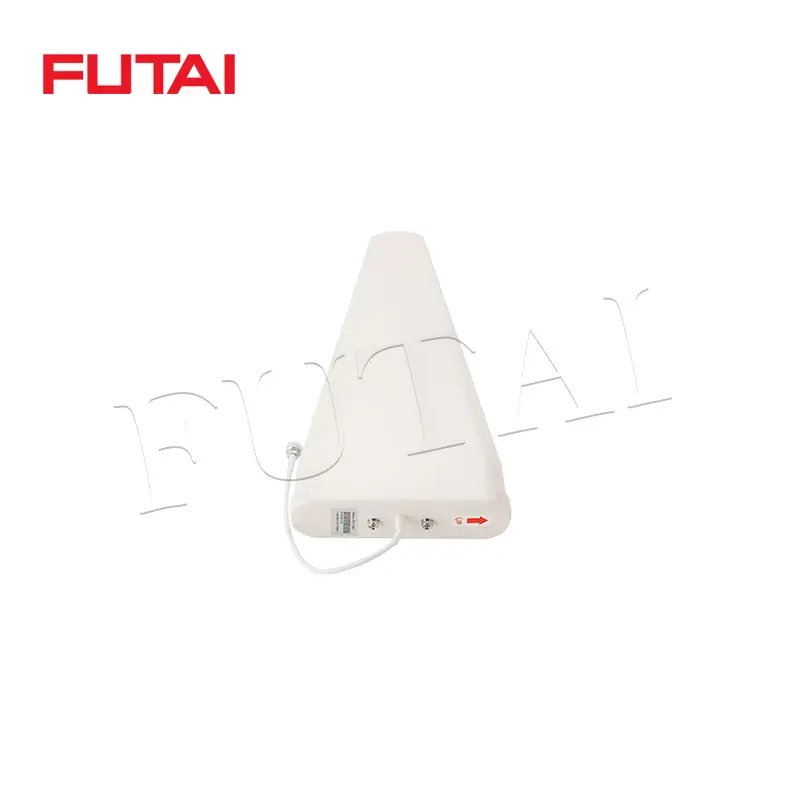

*Wall Mount Antenna with N Female Connector.
Features:

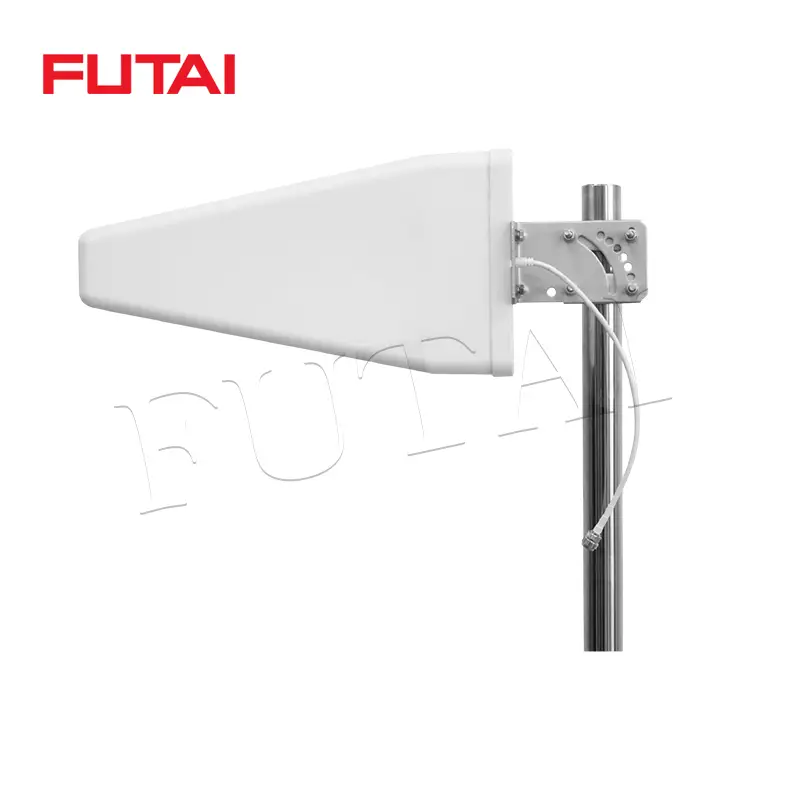

*5G Antenna 12dBi(LTE LPDA 3G+4G+5G) has the multi-band LPDA(log-periodic dipole antenna) with a wide frequency range of 698-3800MHz，which includes steel rod-mounted brackets with plating to provide high corrosion resistance；
*Customize and develope different kinds of Antenna according to customer requirement.
Specification
| Product Model | FT-NF-4GD11-440 |
| Product Specification | |
| 1、Electrical | |
| Frequency Range | 690-960/1710-2700MHz |
| V.S.W.R | ≤1.4 |
| Gain | 11DBi |
| Polarization | Vertical |
| F Beam-Width.H-Plan | 60° |
| F Beam-Width.E-Plan | 50° |
| Impedance | 50Ω |
| Front-to-Back Ratio(db) | ≥25dB |
| Max. Input Power (W) | 100 |
| Lightning Protection | DC Grounded |
| 2、Material & Specification | |
| Connector | N Female |
| Size | 455X210X65MM |
| Color | White |
| Material | ABS |
| Pole Diameter | -Φ30-60(mm) |
| Rated Wind Velocity | -60m/s |
| Temperature Range | -40℃ to +85℃ |
| Substance Compliance | RoHS |
| Weight | 700g |
| Package Type | 10PCS |
Specialized in designing, manufacturing, and selling all kinds of RF Connectors, RF Adapters, Cable Assemblies and Antennas.
