Description:

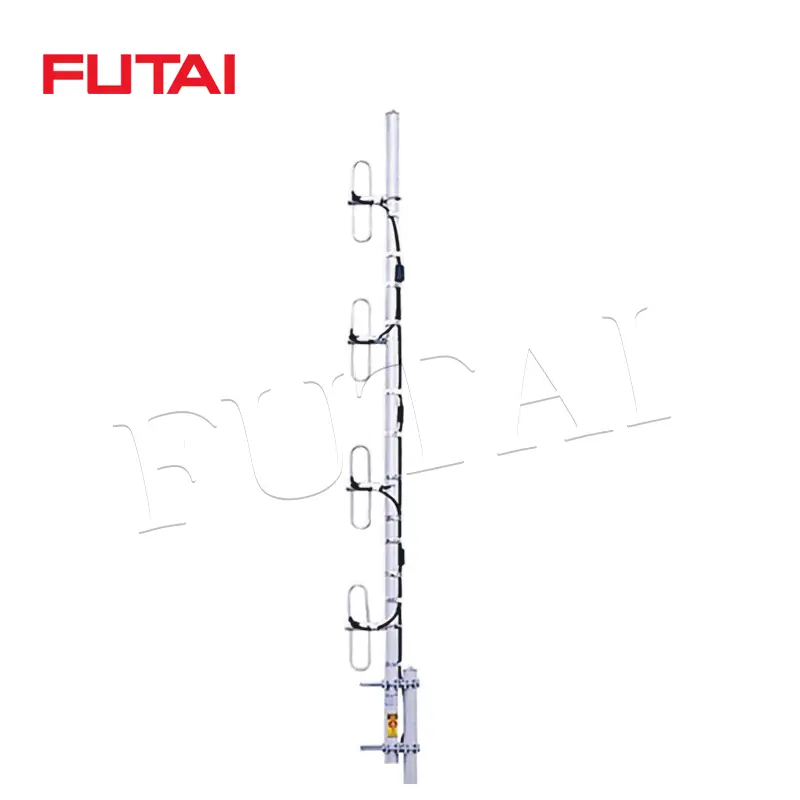

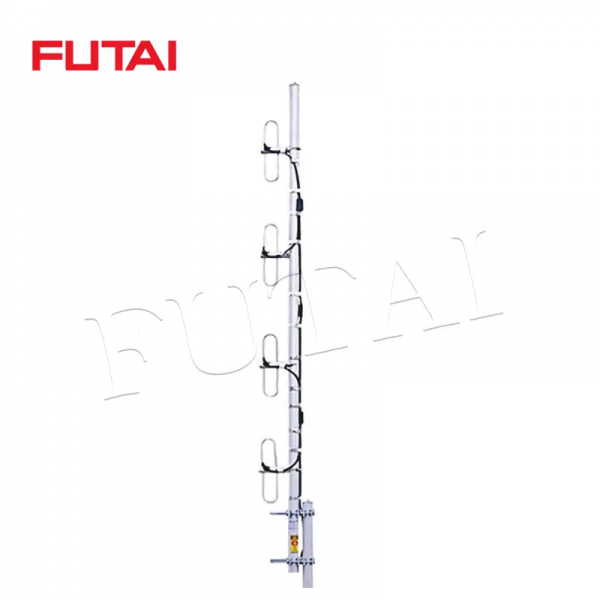

*Yagi Antenna with N Female Connector.
Features:
*It has the characteristics of wireless access system and wireless data transmission.
*High gain and strong directionality.
*Stable performance and strong environmental adaptability.
*Flexible installation,wide applications.
*Customize and explore different kinds of Antennas according to customer requirement.
Specification
| Product Model | FT-NF-433D6-2000 |
| Product Specification | |
| 1、Electrical | |
| Frequency Range | 858～878MHz |
| V.S.W.R | ≤1.4 |
| Gain | 6DBi |
| Polarization | Vertical |
| F Beam-Width.H-Plan | 60° |
| F Beam-Width.E-Plan | 50° |
| Impedance | 50Ω |
| Front-to-Back Ratio(db) | ≥25dB |
| Max. Input Power (W) | 100 |
| Lightning Protection | DC Grounded |
| 2、Material & Specification | |
| Connector | N Female |
| Size | 2000X320mm |
| Color | White |
| Material | ABS |
| Pole Diameter | -Φ30-60(mm) |
| Rated Wind Velocity | -60m/s |
| Temperature Range | -40℃ to +85℃ |
| Substance Compliance | RoHS |
| Weight | 6Kg |
| Package Type | 5PCS |
Specialized in designing, manufacturing, and selling all kinds of RF Connectors, RF Adapters, Cable Assemblies and Antennas.
FUTAI HONGKONG CO.,LTD
