Description:

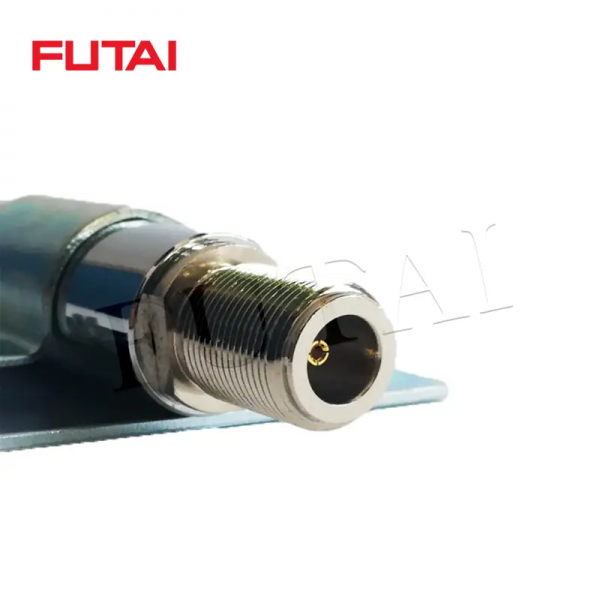

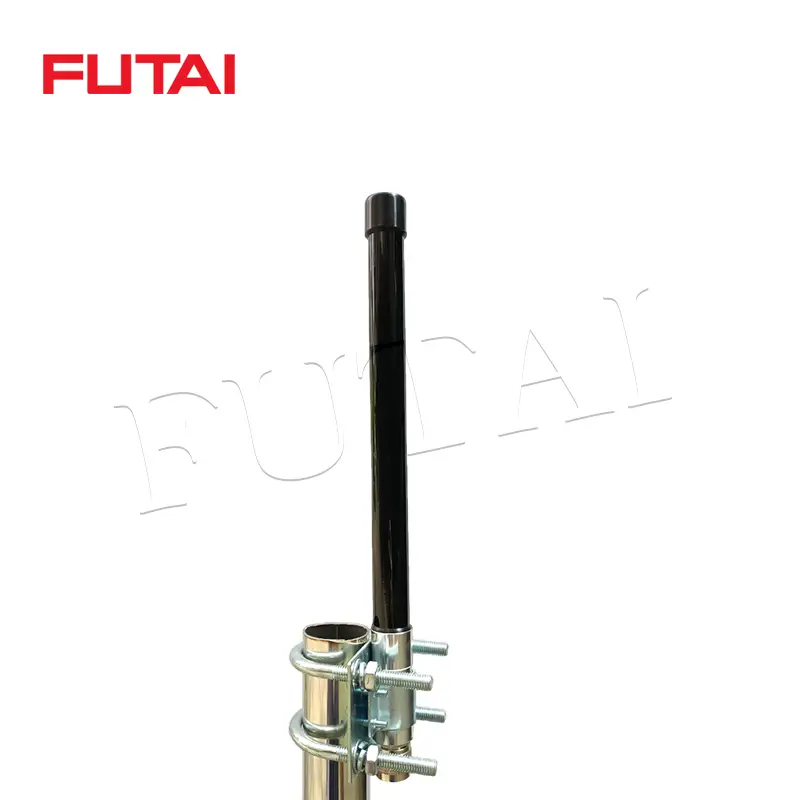

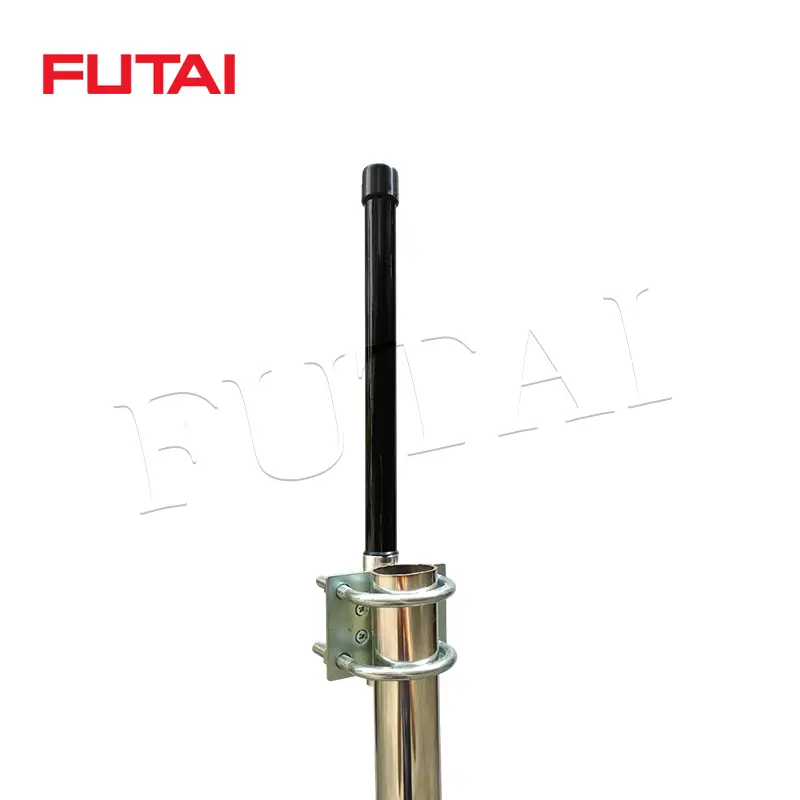

*Omnidirectional Antenna with N Female connector.
Features:
*Wireless access system,long distance transmission coverage；
*Digital trunking wireless communication system；
*Base station/repeater communication system；
*High gain,long transmission distance,good performance；
*Customize and develope different kinds of Antenna according to customer requirement.
Specification
| Product Model | FT-NF-2400Q8-800B |
| Product Specification | |
| 1、Electrical | |
| Frequency Range | 2400～2500MHz |
| V.S.W.R | ≤1.5 |
| Gain | 8DBi |
| Polarization | Vertical |
| F Beam-Width.H-Plan | 360° |
| F Beam-Width.E-Plan | 15° |
| Impedance | 50Ω |
| Max. Input Power (W) | 50 |
| Lightning Protection | DC Grounded |
| 2、Material & Specification | |
| Connector | N Female |
| Size | Φ20X800mm |
| Color | Black |
| Material | Fiberglass |
| Pole Diameter | Φ30-60(mm) |
| Rated Wind Velocity | -60m/s |
| Temperature Range | -40℃ to +85℃ |
| Substance Compliance | RoHS |
| Weight | 604g |
| Package Type | 50PCS |
Specialized in designing, manufacturing, and selling all kinds of RF Connectors, RF Adapters, Cable Assemblies and Antennas.
