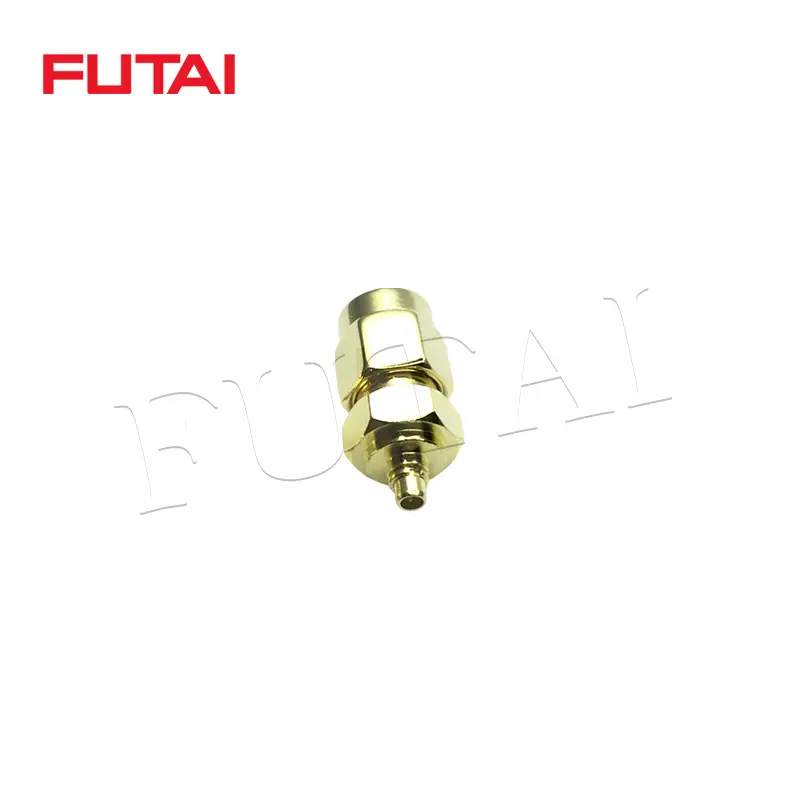

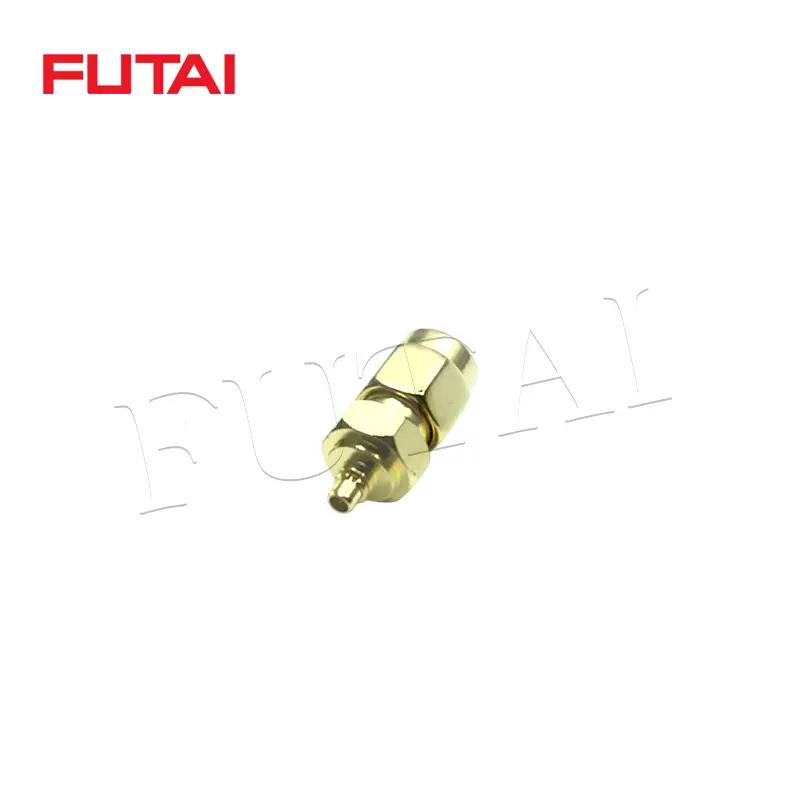

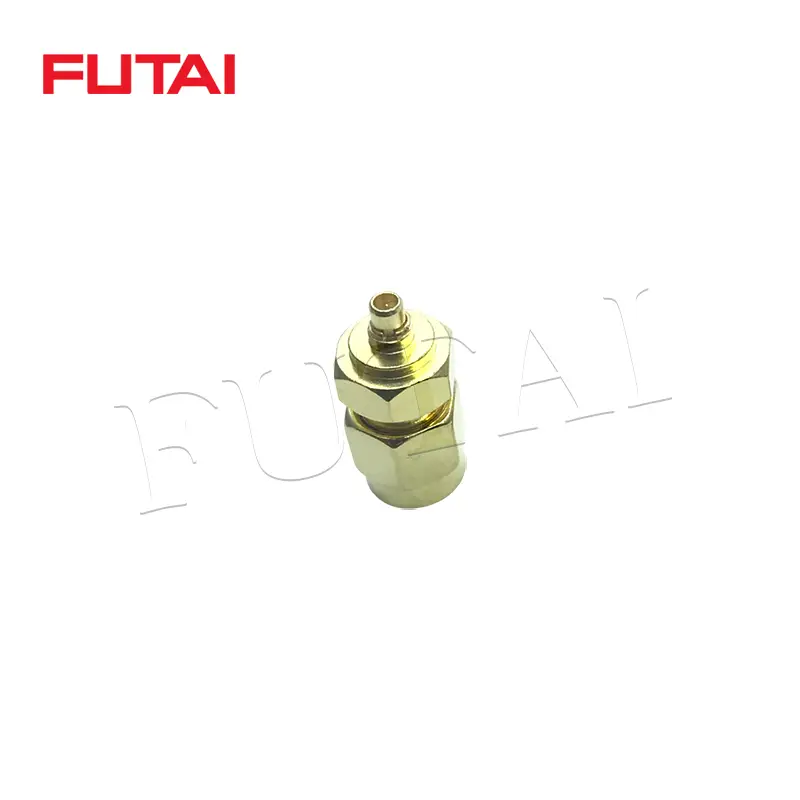

FT-MMCXM-SMAM-50

Description:

Features:

Adapter is wide variety, complete specifications, it has the characteristics of wide frequency band and low VSWR, also is the necessary products for instrument measurement and different interface cables to connect.
Professional manufacturer, support customization, quality assurance, fast delivery.

Online Inquiry

Specification

Product Model	FT-MMCXM-SMAM-50
1、Product Description
Connector Name	MMCX Male-SMA Male
2、Electrical
Frequency Range	DC~6GHz
V.S.W.R	≤1.25
Impedance	50Ω
Insertion Loss	≤0.15dB
Centre Conductor Retention Range	≥0.25 N
Coupling nut Retention Force	≥180 N
Durability(mating)	≥500(cycles)
Max. Input Power (W)	50
3、Material & Plating
Center pin contact	Brass BerylliumCopper/ Gold Plating
Outer contact & Body	Brass H59-1/ Gold Plating
Dielectric Insulator	PTFE
Gasket	Silicone Rubber
4、Environmental & Mechanical Specification
Operating Temperature	-40℃ to +85℃
Storage Temperature	-40℃ to +85℃
Substance Compliance	RoHS
Weight	4.24g
Package Type	100PCS
