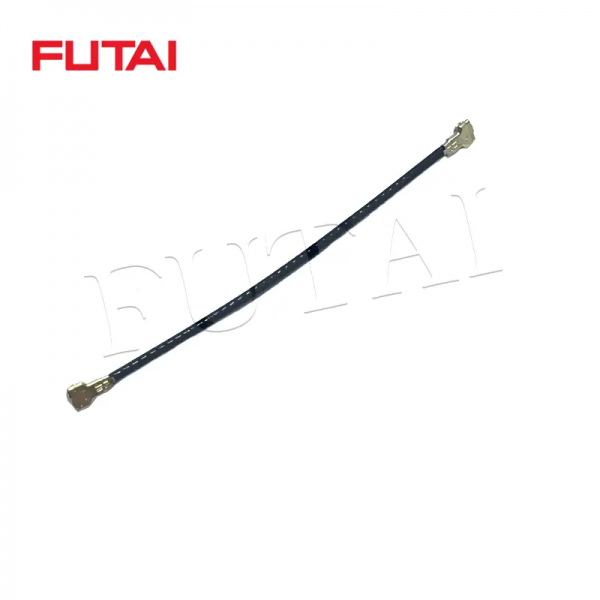

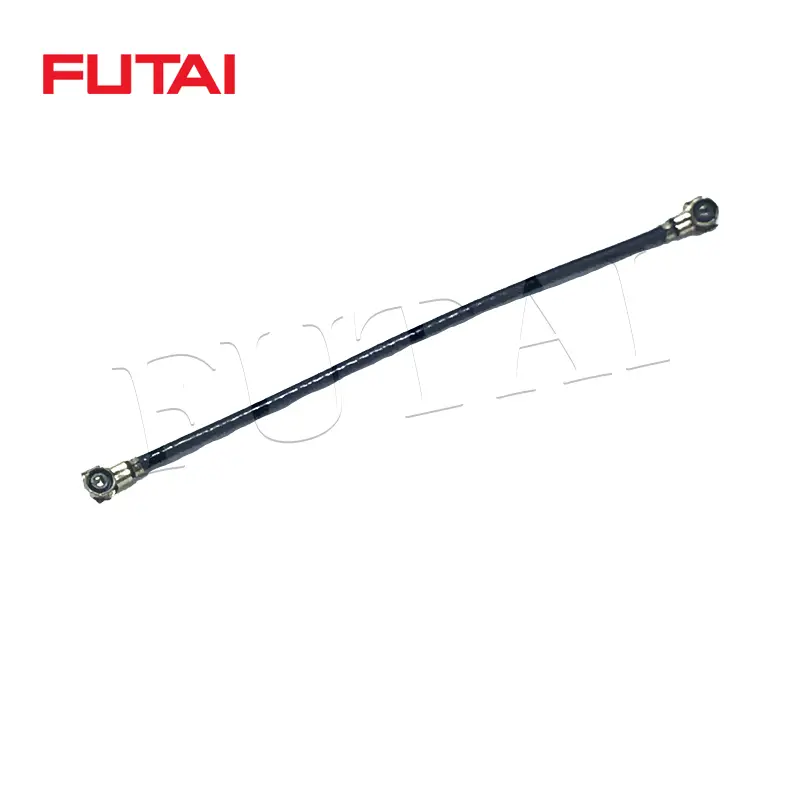

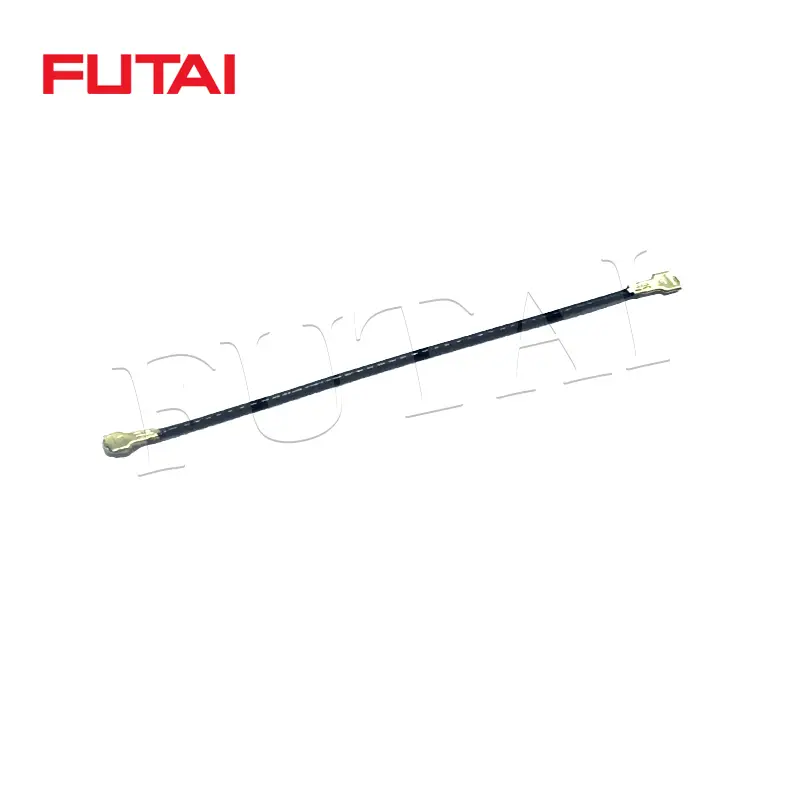

FT-IPEX-F-IPEX-F-0.81-100

Description:

Features:

UFL/ U.F.L /IPX/IPEX/MHF RF cable is mainly used for wireless device connection to achieve maximum performance with minimum space.It is widely used in mobile phones, antennas, drones, electronic measuring instruments, 6G, 5G, 4G, LTE, Wi-Fi, Bluetooth, GPS, WiGig, M2M, IOT, SigFox, WiSUN, NB-IOT, LoRa and other field.
Customize different kinds of RF Coaxial Connector and RF Coaxial cable.

Online Inquiry

Specification

Product Model	FT-IPEX-F-IPEX-F-0.81-100
1、Product Description
Connector Name	I-PEX Female-I-PEX Female
2、Material & Specification
Cable Type	0.81
Cable length	100MM
Color	Black
3、Material&Specification
Frequency Range	DC~6GHz
V.S.W.R	≤1.25
Impedance	50Ω
Centre Conductor Retention Range	≥0.25 N
Coupling nut Retention Force	≥180 N
Durability(mating)	≥500(cycles)
Max. Input Power (W)	20
4、Environmental & Mechanical Specification
Operating Temperature	-40℃ to +85℃
Storage Temperature	-40℃ to +85℃
Substance Compliance	RoHS
Weight	0.1g
Package Type	100PCS
