Description:

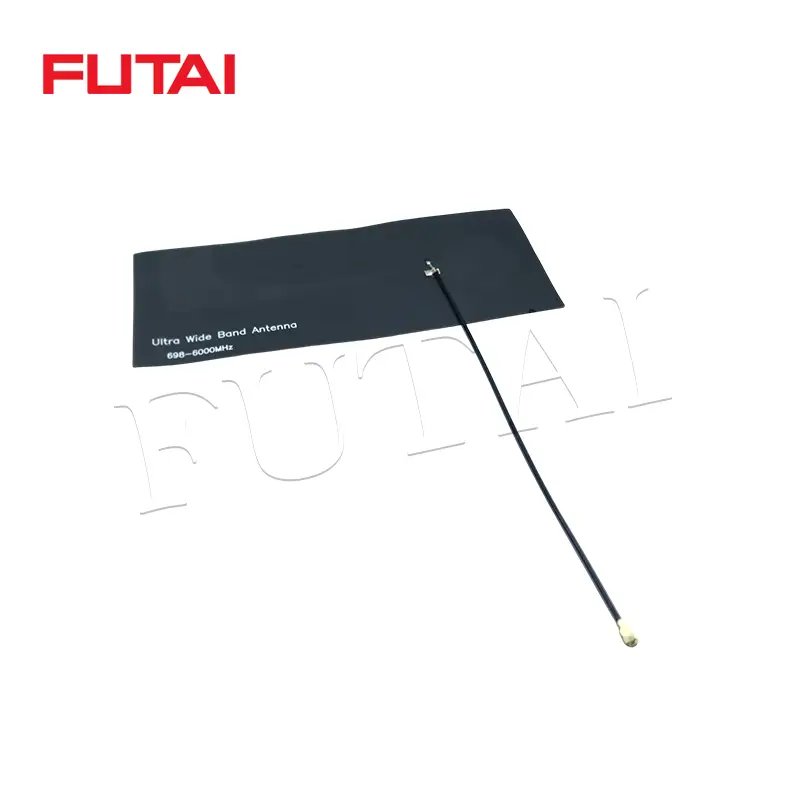

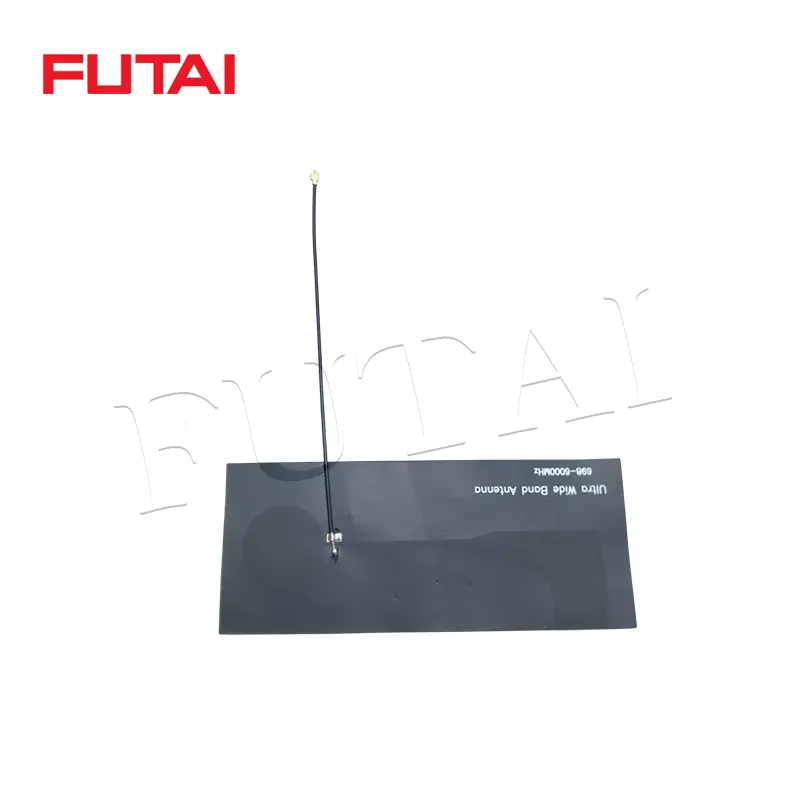

*The PCB Embedded Antenna with IPEX Female Connector.
Features:

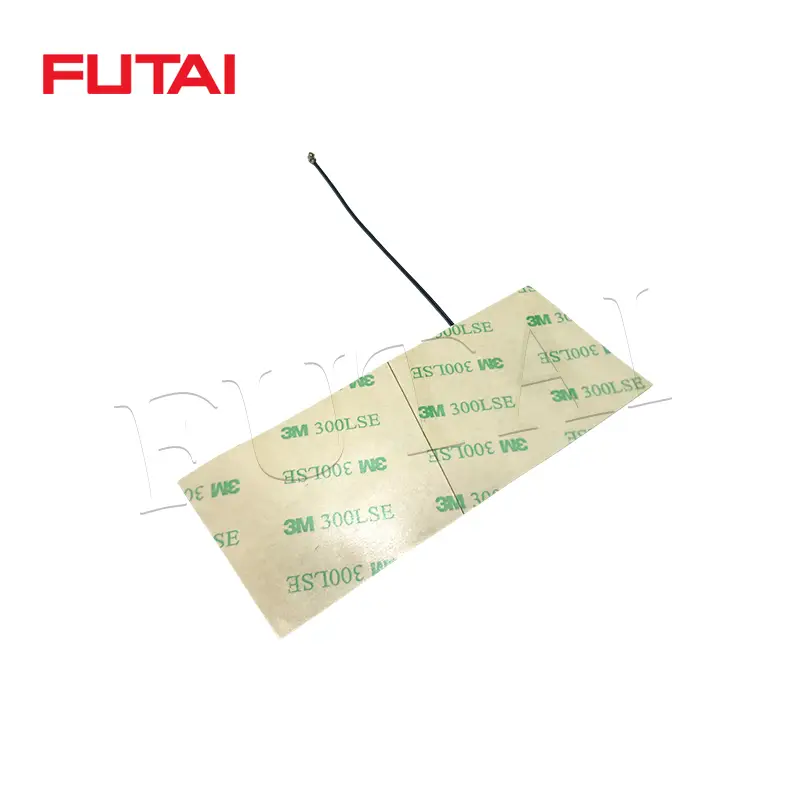

*The PCB embedded antenna is a highly integrated hidden antenna.It is directly printed on the PCB board with 3M adhesive on the back.It is suitable for use with hidden and modular devices,so as to achieve the purpose of simplicity, efficiency, convenience and concealment.
*Customize and develope different kinds of Antenna according to customer requirement.
Specification
| Product Model | FT-IPEX-F-24FPC05-137-100 |
| Product Specification | |
| 1、Electrical | |
| Frequency Range | 2400～2500MHz |
| V.S.W.R | ≤2.0 |
| Gain | 3DBi |
| Polarization | Omnidirectional |
| Impedance | 50Ω |
| Max. Input Power (W) | 5 |
| 2、Material & Specification | |
| Connector | IPEX Female |
| Size | 12X5X0.26MM |
| Material | FPC |
| Color | Black |
| Cable Type | 1.37 |
| Cable Length | 100mm |
| Cable Color | Black |
| Temperature Range | -40℃ to +85℃ |
| Substance Compliance | RoHS |
| Weight | 3g |
| Package Type | 50PCS |
Specialized in designing, manufacturing, and selling all kinds of RF Connectors, RF Adapters, Cable Assemblies and Antennas.
