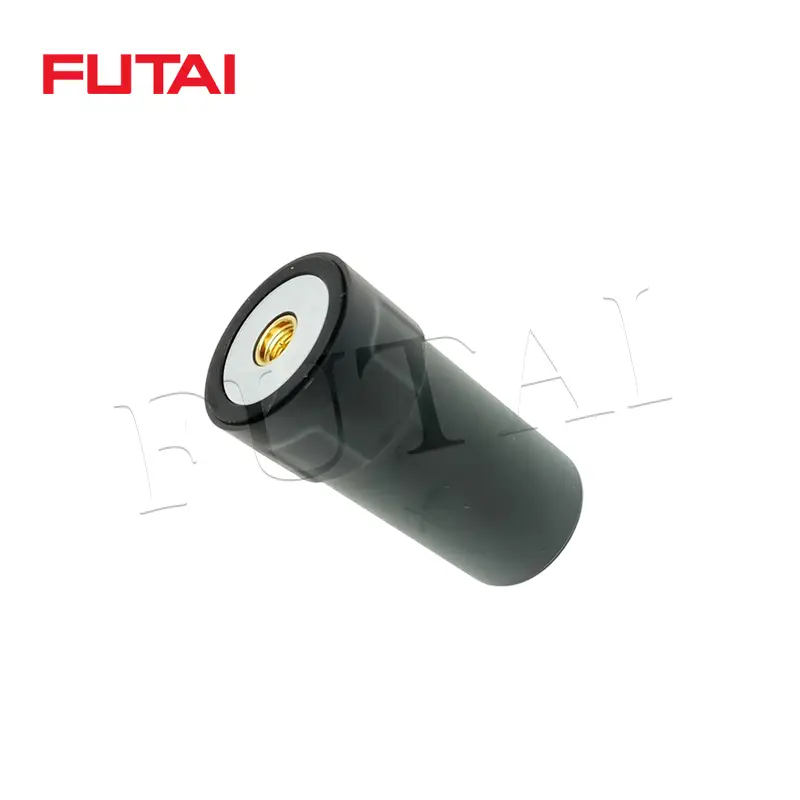

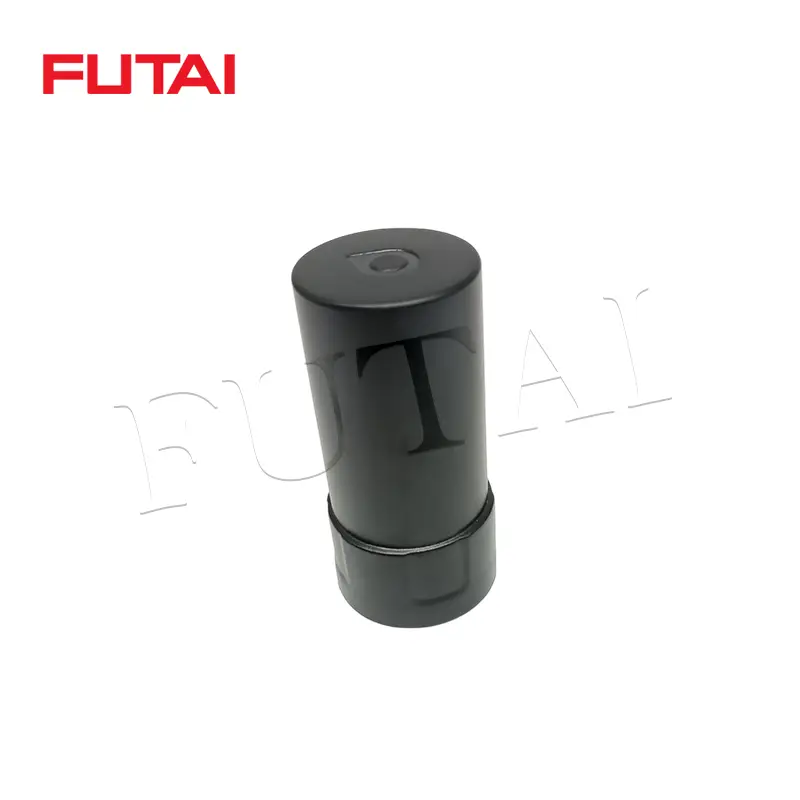

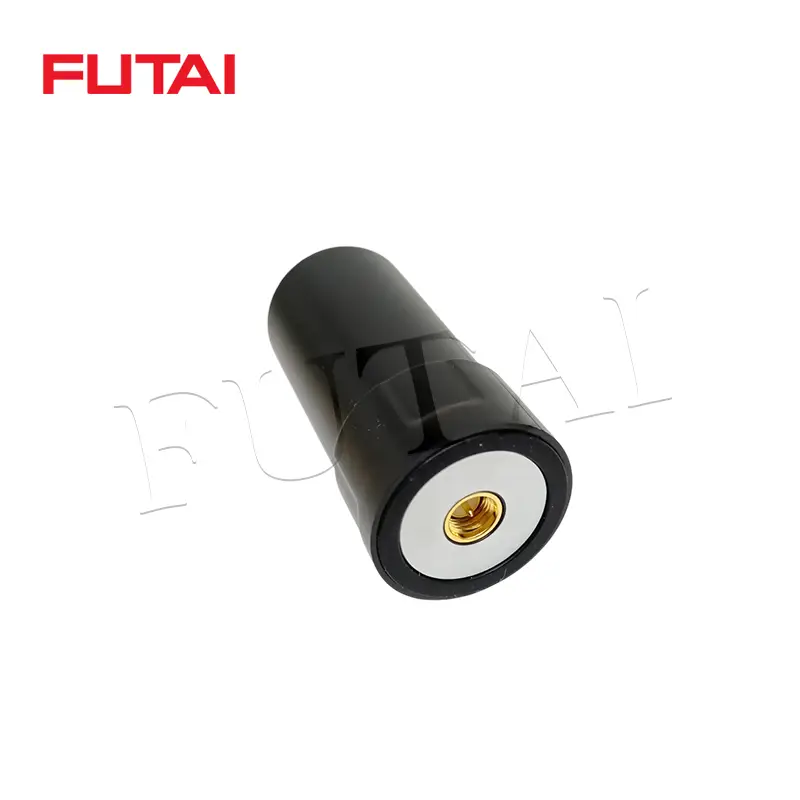

FT-GNSS-SMAM-Q5-41

Online Inquiry

Specification

Product Model	FT-GNSS-SMAM-Q5-41
Product Specification
1、Electrical
Frequency Range	GPS/GNSS
V.S.W.R	≤1.5
Gain	5DBi
Impedance	50Ω
Polarization	RHCP
LNA Gain	28±2DB
Noise Figure	1.5dB
Fex-band Attenuation	12dB@CF+50MHz/16dB@CF-50MHz
V.S.W.R	≤1.8
Voltage	2.7～5.0
Max. Current Consumption(MA)	11
2、Material & Specification
Connector	SMA Male
Size	Φ40X41mm
Color	Black
Mount Method	Fixing with screw Installation
Material	ABS
Certificates	IP67
Temperature Range	-40℃ to +85℃
Substance Compliance	RoHS
Weight	17g
Package Type	50PCS
