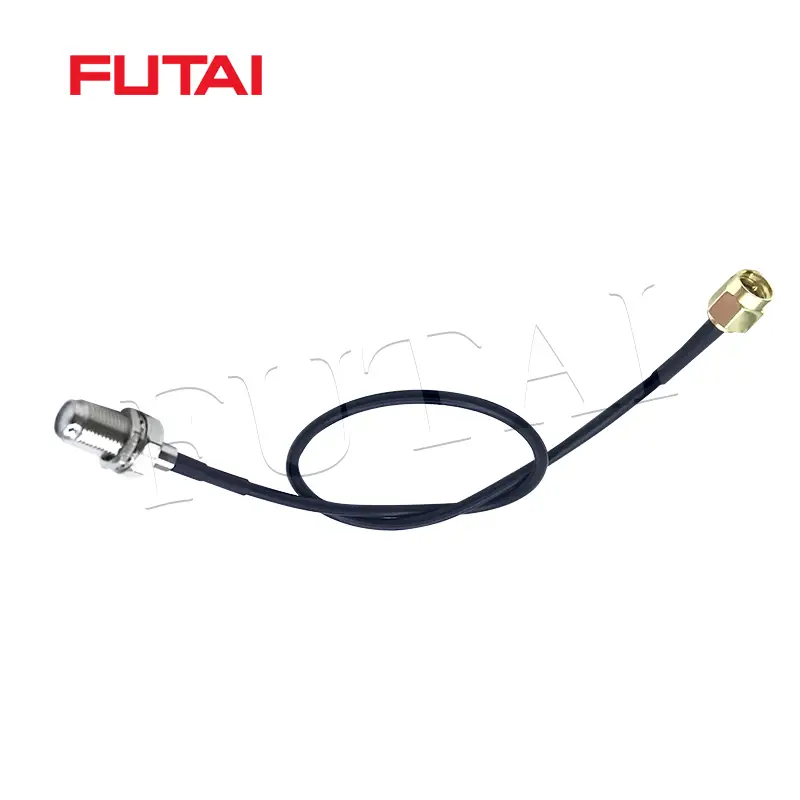

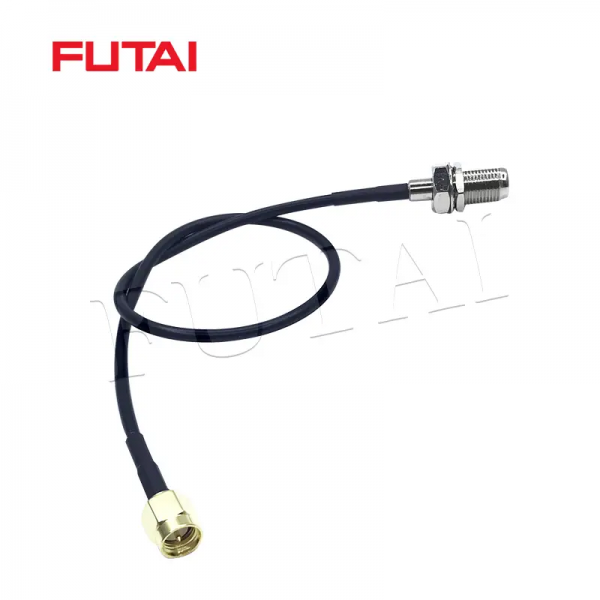

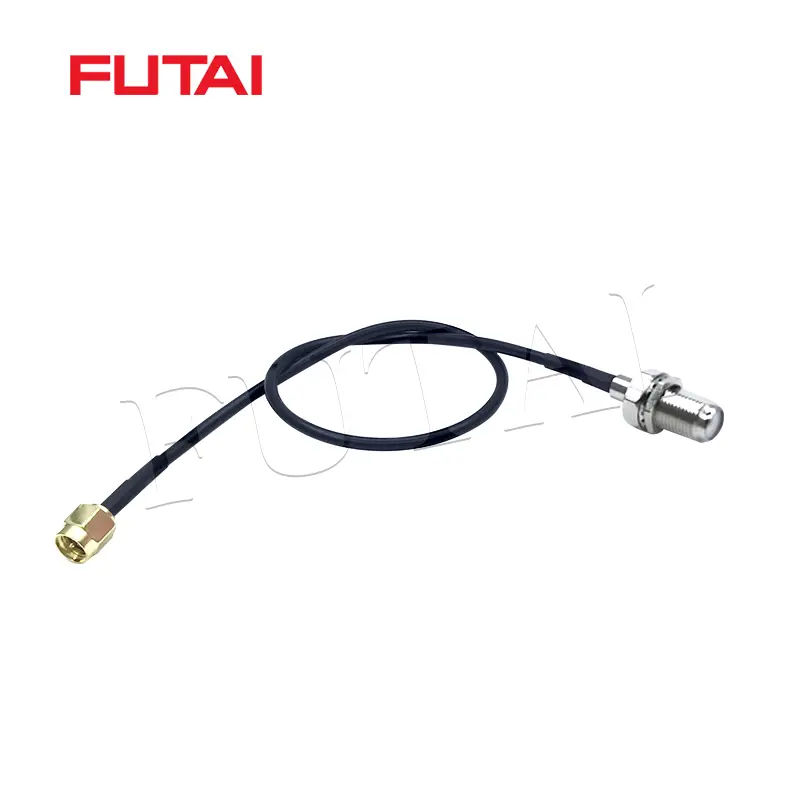

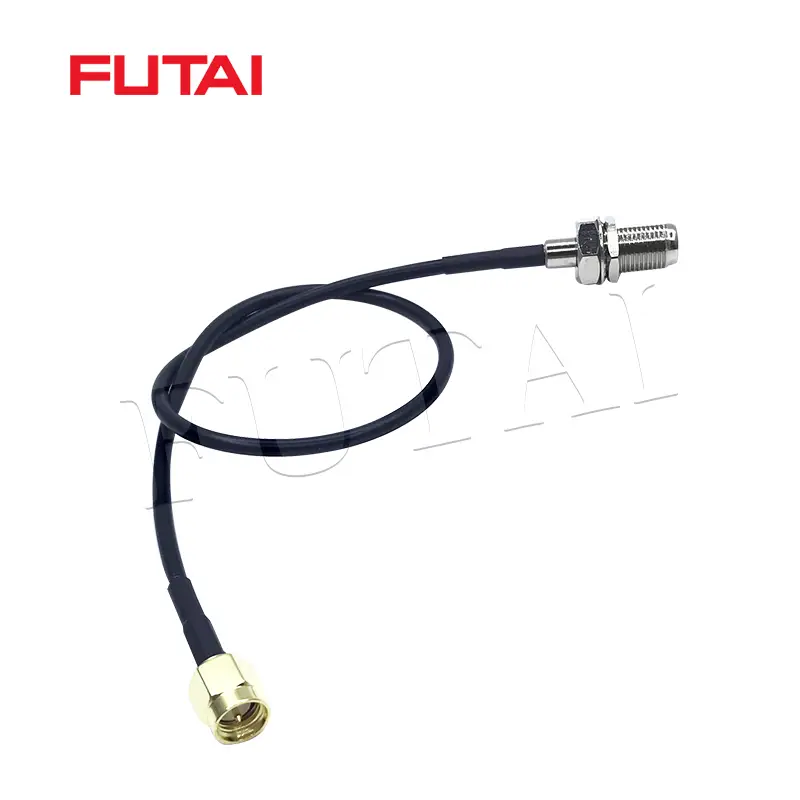

FT-FF-SMAM-174-300

Description:

Features:

RG system cables match the requirement of MIL-C-17(U.S. Military standard) coaxial cable，it has the characteristics of excellent electrical and mechanical performance,good shielding,low attenuation, and with the impedance of 50 ohms.It is widely used in host computer, communication instruments, electronic equipment, wireless network, program control, unmanned vending machines, 5G communication terminals and other fields,and providing secure and reliable wireless connection.
Customize different kinds of RF Coaxial Connector and RF Coaxial cable.

Online Inquiry

Specification

Product Model	FT-FF-SMAM-174-300
1、Product Description
Connector Name	F Female-SMA Male
2、Material & Specification
Cable Type	RG174 RG316
Cable length	300MM
Color	Black
3、Material&Specification
Frequency Range	DC~6GHz
V.S.W.R	≤1.25
Impedance	50Ω
Centre Conductor Retention Range	≥0.25 N
Coupling nut Retention Force	≥180 N
Durability(mating)	≥500(cycles)
Max. Input Power (W)	50
4、Environmental & Mechanical Specification
Operating Temperature	-40℃ to +85℃
Storage Temperature	-40℃ to +85℃
Substance Compliance	RoHS
Weight	15g
Package Type	100PCS
