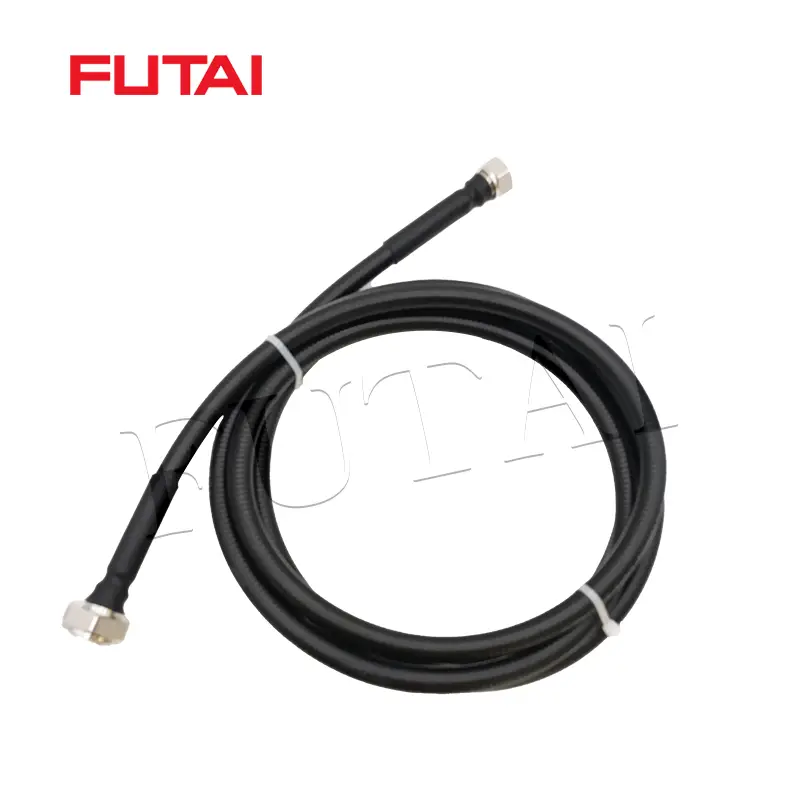

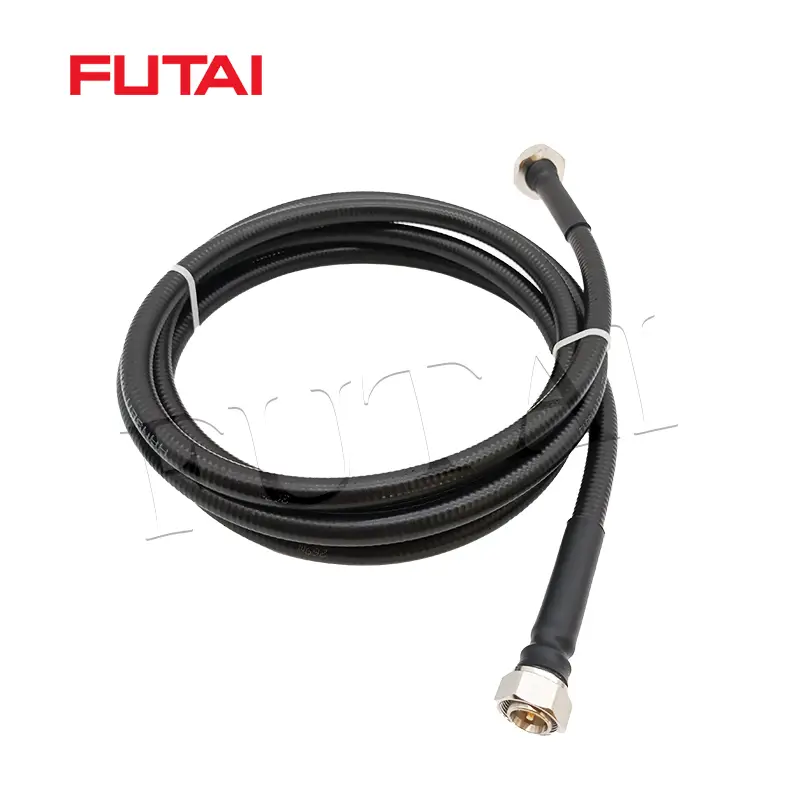

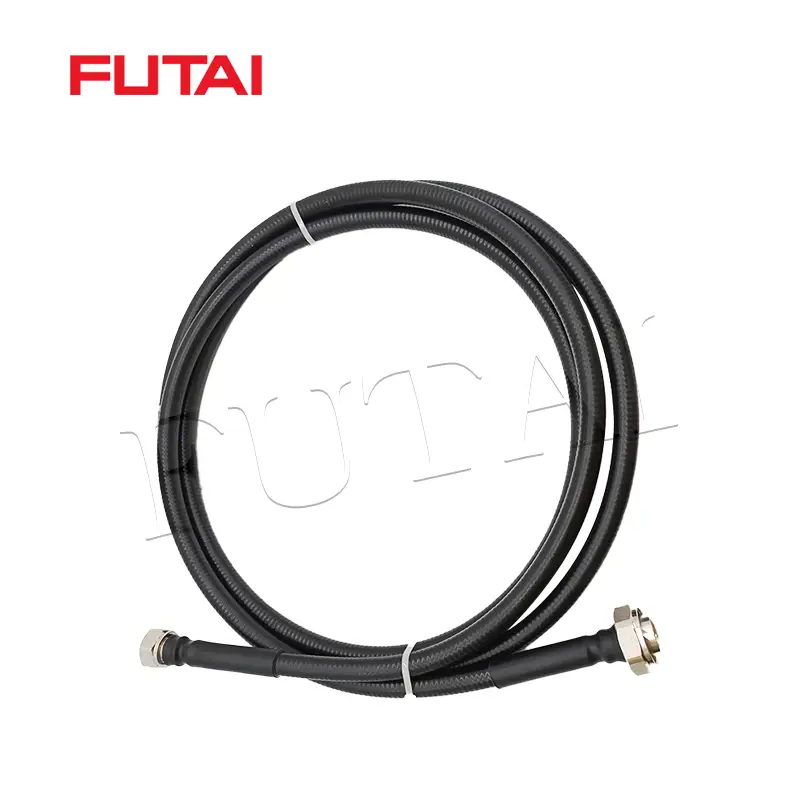

FT-DINM-DINM-1/4-3000

Description:

Features:

Foam insulated corrugated tube cable has the characteristics of Low loss, good shielding, small VSWR, low attenuation.
It is widely used in mobile data communication network, aerospace, microwave communication, radar, military equipment, radio tower connection, civil radio and other equipment transmission wiring applications.
Customize different kinds of RF Coaxial Connector and RF Coaxial cable.

Online Inquiry

Specification

Product Model	FT-DINM-DINM-1/4”-3000
1、Product Description
Connector Name	DIN Male-DIN Male
2、Material & Specification
Cable Type	1/4 Soft
Cable length	3000MM
Color	Black
3、Material&Specification
Frequency Range	DC~3GHz
V.S.W.R	≤1.25
Impedance	50Ω
900MHz attenuation	≤0.38dB
1800MHz attenuation	≤0.55dB
2600MHz attenuation	≤0.7dB
PIM,3rd Order,2X20W	≤-152dBc
Durability(mating)	≥500(cycles)
4、Environmental & Mechanical Specification
Operating Temperature	-40℃ to +85℃
Storage Temperature	-40℃ to +85℃
Substance Compliance	RoHS
Waterproof Rating	IP67
Weight	610g
Package Type	50PCS
