Specification

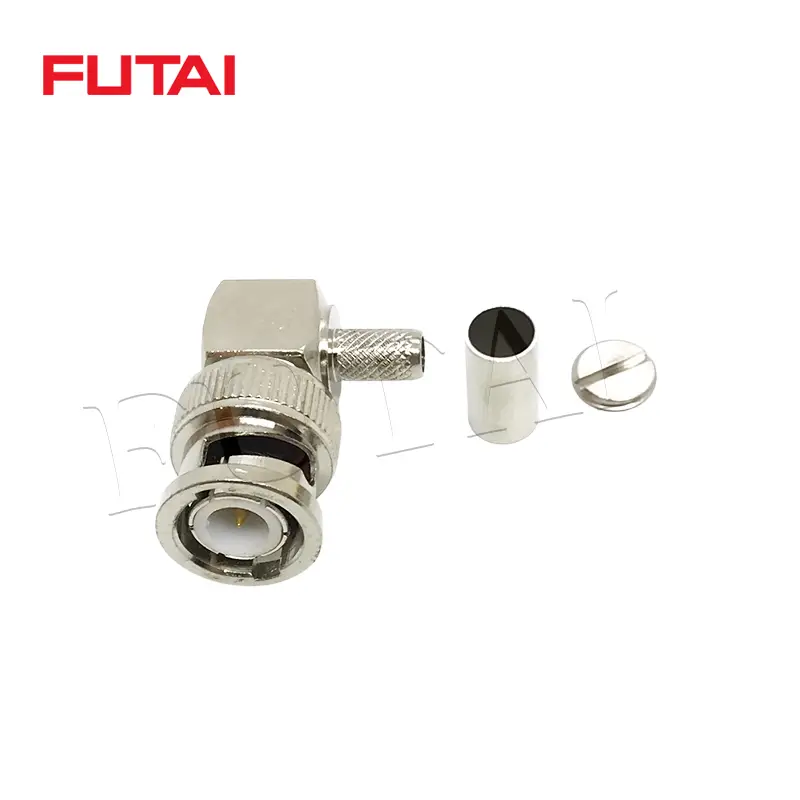

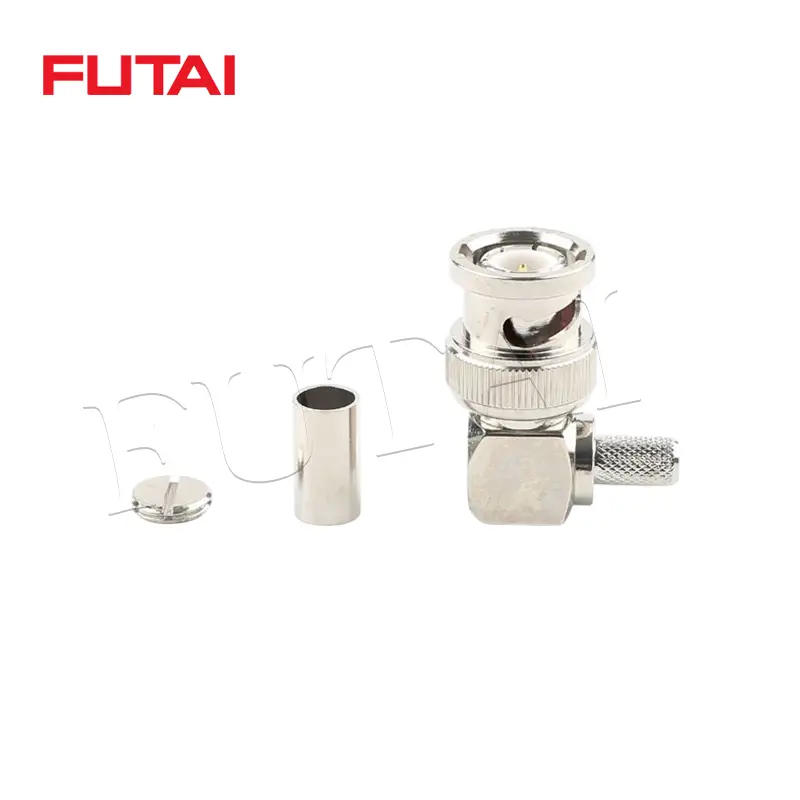

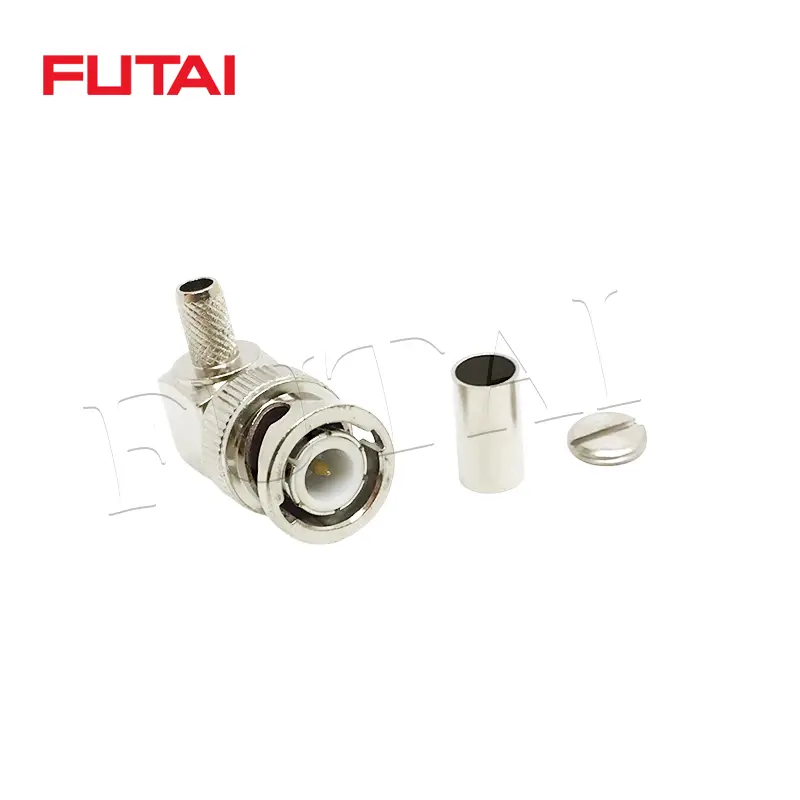

| Product Model | FT-BNCM-W-174 |
| 1、Product Description | |
| Connector Name | BNC Male |
| Cable | RG174 RG316 |
| Mount Method | Crimp |
| 2、Electrical | |
| Frequency Range | DC~3GHz |
| V.S.W.R | ≤1.25 |
| Impedance | 50Ω |
| Insertion Loss | ≤0.15dB |
| Centre Conductor Retention Range | ≥0.25 N |
| Coupling nut Retention Force | ≥180 N |
| Durability(mating) | ≥500(cycles) |
| Max. Input Power (W) | 50 |
| 3、Material & Plating | |
| Center pin contact | Brass Beryllium Copper/ Gold Plating |
| Outer contact & Body | Brass H59-1/ Nickel Plating |
| Dielectric Insulator | PTFE |
| Gasket | Silicone Rubber |
| Crimp ferrule | Brass/ Nickel Plating |
| 4、Environmental & Mechanical Specification | |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -40℃ to +85℃ |
| Substance Compliance | RoHS |
| Weight | 15.34g |
| Package Type | 100PCS |
