FT-BNCF-PCB-18.3

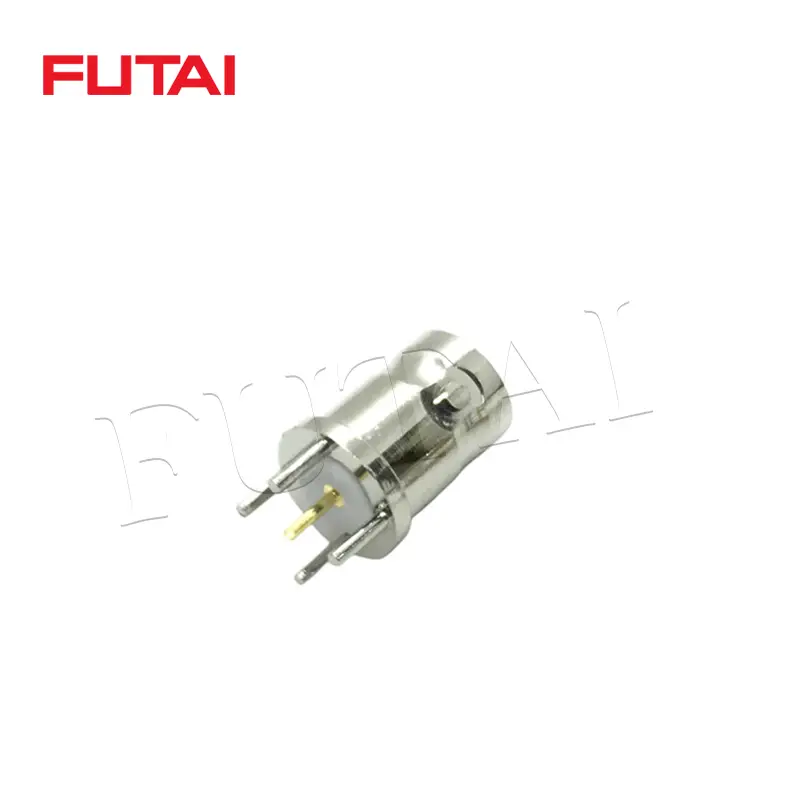

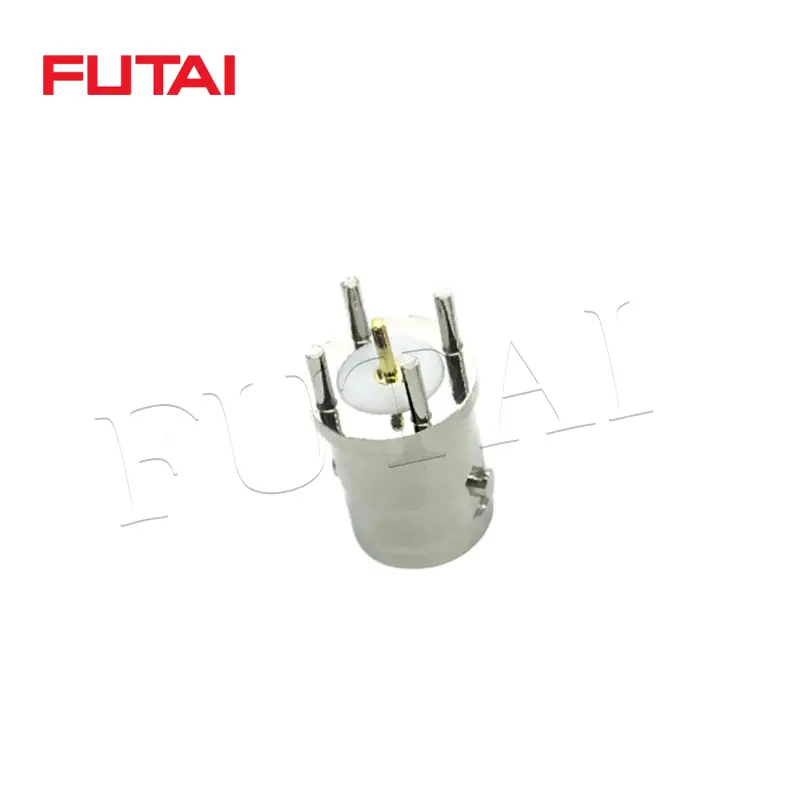

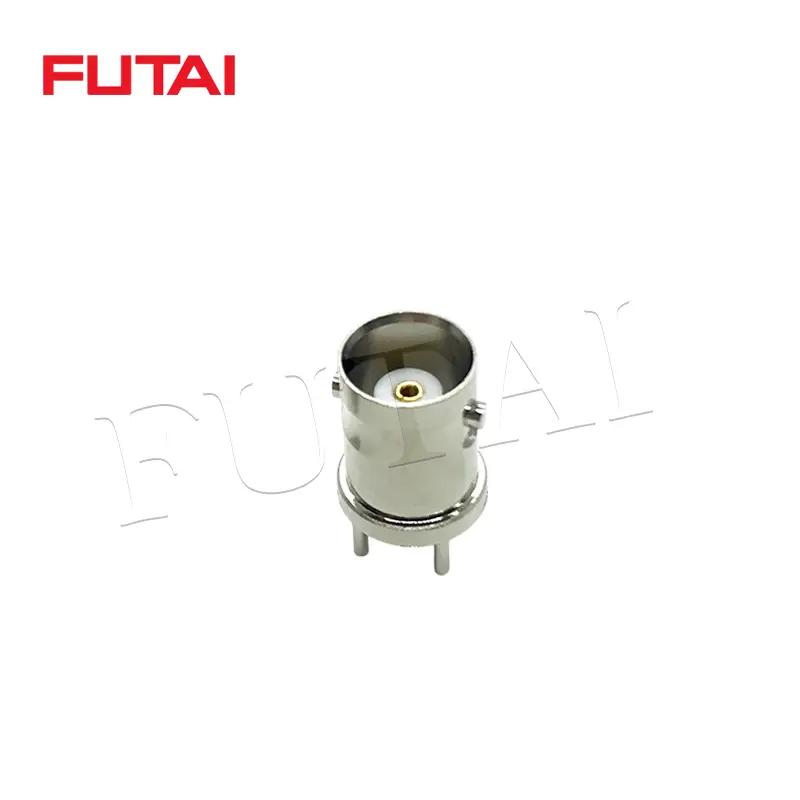

BNC Female for PCB Connector.

Online Inquiry

Features:

BNC Female Connector is a bayonet type RF coaxial connector, it has the characteristics of rapid connection (separation) and reliable contact. It is also widely used in computer industry, wireless network, medical equipment and electronic instrument field to connect RF coaxial cable.
Professional manufacturer, support customization, quality assurance, fast delivery.

Specification

Product Model	FT-BNCF-PCB-18.3
1、Product Description
Connector Name	BNC Female
Mount Method	PCB
Mount Method	Weld
2、Electrical
Frequency Range	DC~3GHz
V.S.W.R	≤1.25
Impedance	50Ω
Insertion Loss	≤0.15dB
Centre Conductor Retention Range	≥0.25 N
Coupling nut Retention Force	≥180 N
Durability(mating)	≥500(cycles)
Max. Input Power (W)	50
3、Material & Plating
Center pin contact	Brass Beryllium Copper/ Gold Plating
Outer contact & Body	Brass H59-1/ Nickel Plating
Dielectric Insulator	PTFE
4、Environmental & Mechanical Specification
Operating Temperature	-40℃ to +85℃
Storage Temperature	-40℃ to +85℃
Substance Compliance	RoHS
Weight	4.27g
Package Type	100PCS
