FUTAI HONGKONG CO.,LTD.

FT-2XNF-6938GD12-600D65

Description:

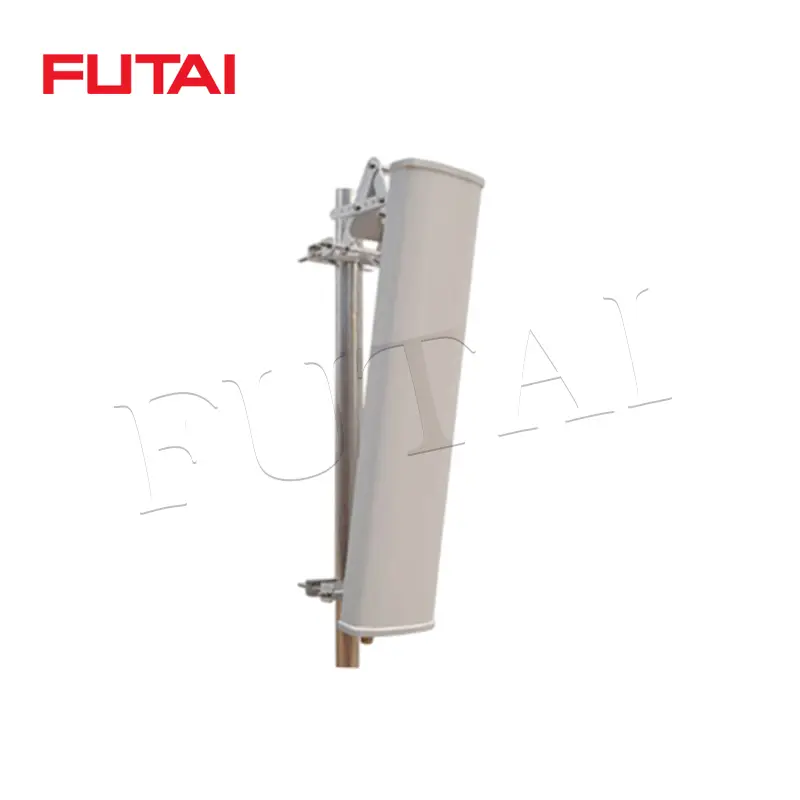

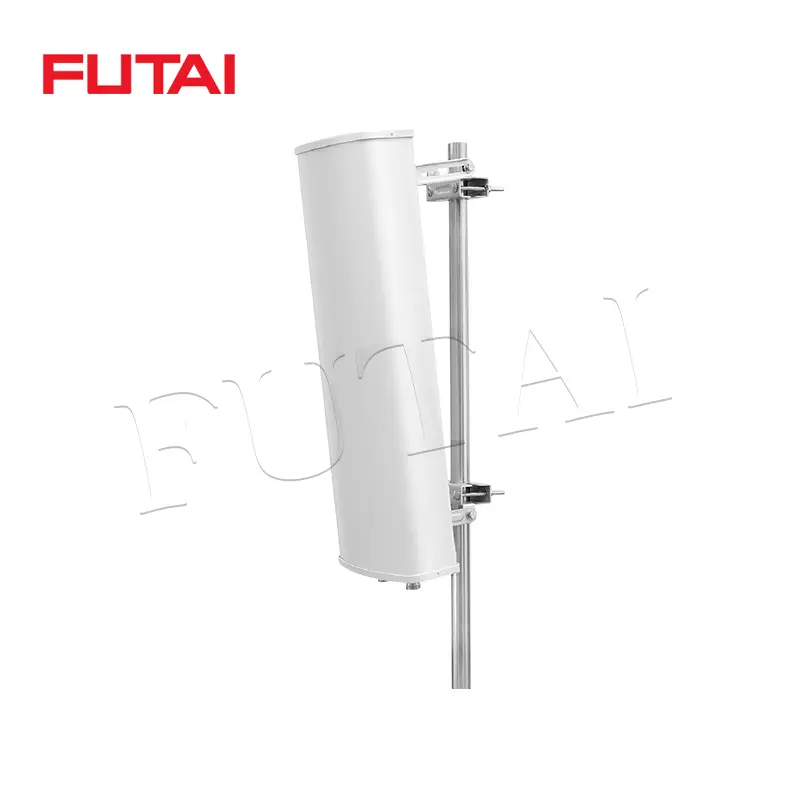

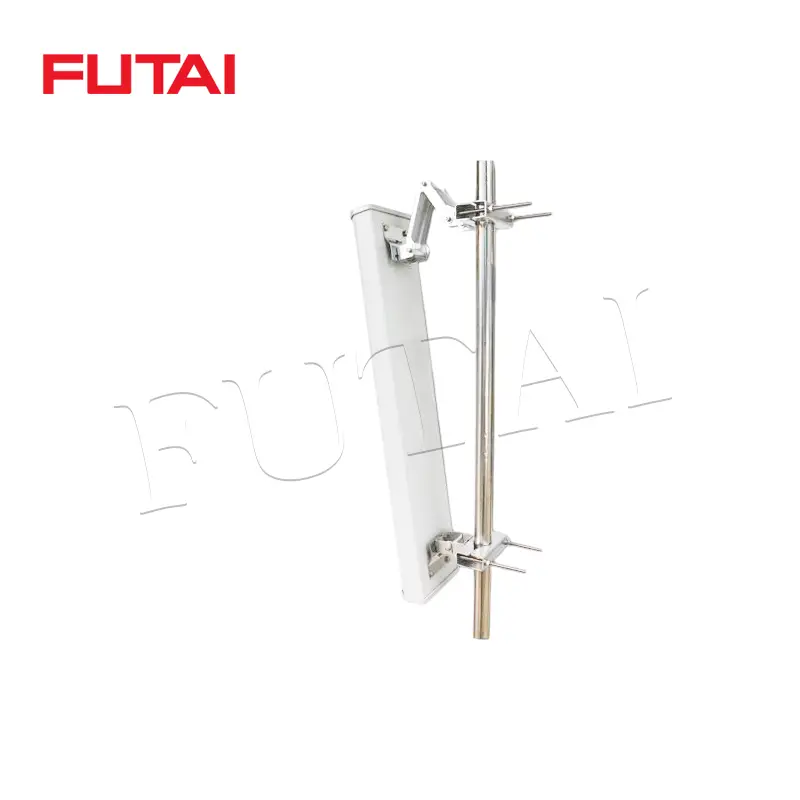

*Panel Antenna with 2XN Female Connector.

Features:

*Wireless access system,long distance transmission coverage;

*Digital trunking wireless communication system;

*Base station/repeater communication system;

*High gain,long transmission distance,good performance;

*Customize and develope different kinds of Antenna according to customer requirement.


Online Inquiry

Specification

Product Model FT-2XNF-6938GD12-600D65
Product Specification
1、Electrical
Frequency Range 698~3800MHz
V.S.W.R ≤1.5
Gain 12DBi
Polarization Vertical
F Beam-Width.h-Plan 65°
F Beam-Width.E-Plan 50°
Impedance 50Ω
Front-to-Back Ratio(db) ≥25dB
Max. Input Power (W) 100
Lightning Protection DC Grounded
2、Material & Specification
Connector 2XN Female
Size 600X240X130mm
Color White
Material ABS
Pole Diameter -Φ30-60(mm)
Rated Wind Velocity -60m/s
Temperature Range -40℃ to +85℃
Substance Compliance RoHS
Weight 4.3kg
Package Type 1PCS
