Description:

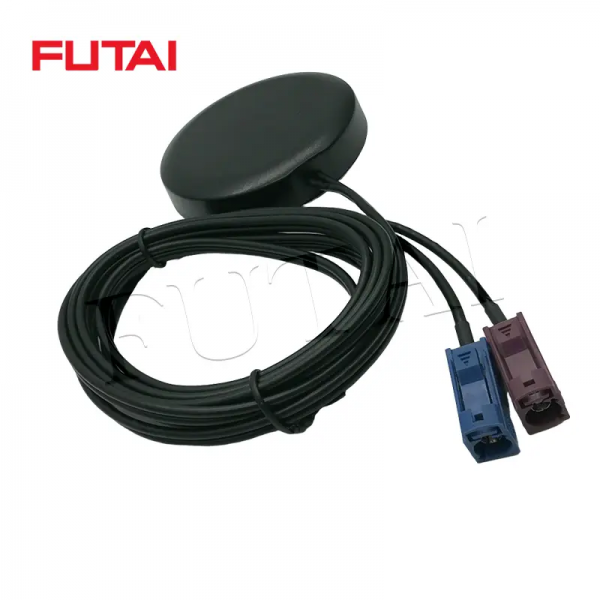

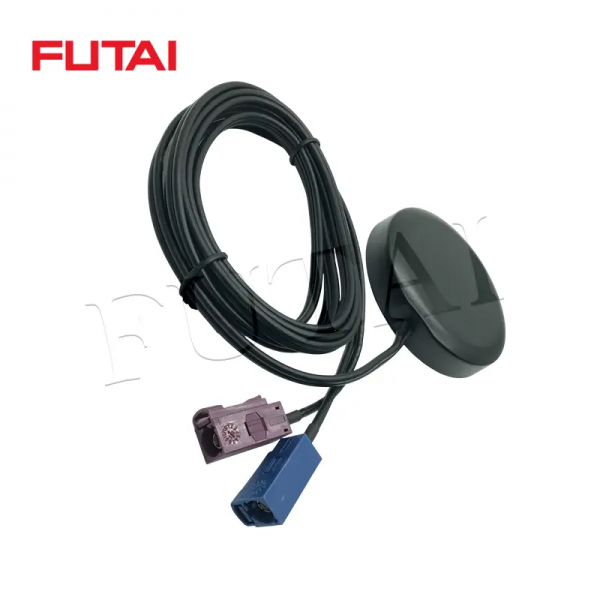

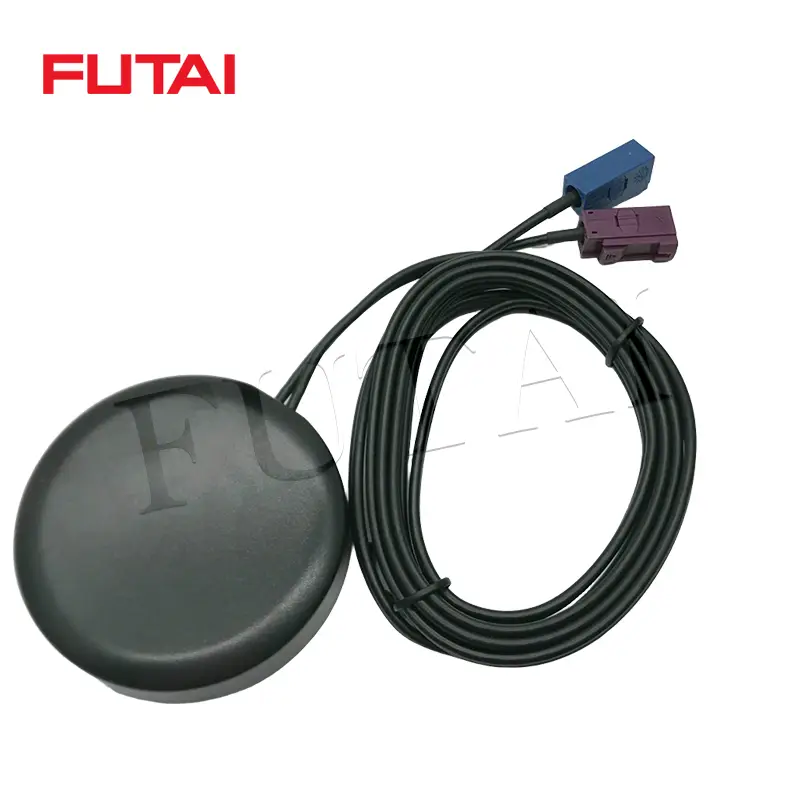

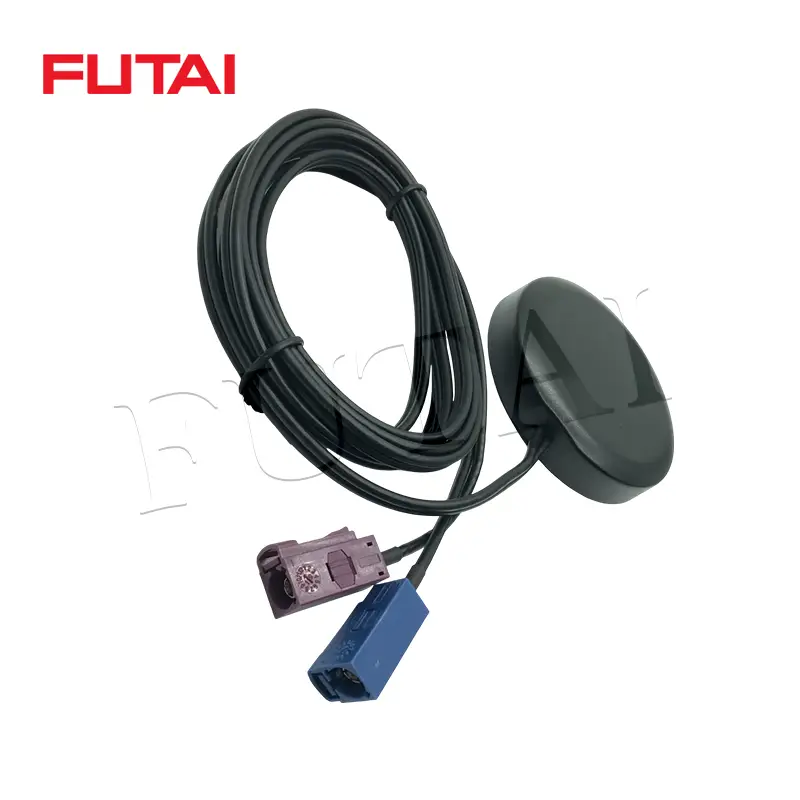

*GPS Antenna with 2XFAKRA Female Connector.
Features:
*The ceramic embedded antenna is a small,positioning hidden antenna.It reduce the size of antenna effectively,and suitable for use with low-power bluetooth module devices,it also provides an antenna with accurate positioning and good concealment.
*Customize and develope different kinds of Antenna according to customer requirement.
Specification
| Product Model | FT-2XFAKRA-F-5G/GPS08-3 |
| Product Specification | |
| 1、Electrical (GPS/GNSS) | |
| Frequency Range | GPS/GNSS |
| V.S.W.R | ≤1.5 |
| Gain | 5DBi |
| Impedance | 50Ω |
| Polarization | RHCP |
| LNA Gain | 28±2DB |
| Noise Figure | 1.5dB |
| Fex- band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz |
| V.S.W.R | ≤1.8 |
| Voltage | 2.7～5.0 |
| Max. Current Consumption(MA) | 11 |
| 2、Electrical 5G | |
| Frequency Range | 690-960/1710-2700/3300一3800MHz |
| V.S.W.R | ≤2.0 |
| Gain | 3DBi |
| Polarization | Vertical |
| Max. Input Power (W) | 20 |
| 3、Material & Specification | |
| Connector | FAKRA Female-D |
| Connector | FAKRA Female-C |
| Size | Φ80X15mm |
| Color | Black |
| Cable Type | RG174 |
| Cable Length | 2x3000mm |
| Cable Color | Black |
| Mount Method | Magnetic Installation |
| Material | ABS |
| Certificates | IP67 |
| Temperature Range | 40℃ to +85℃ |
| Substance Compliance | RoHS |
| Weight | 87g |
| Package Type | 50PCS |
